Product Description

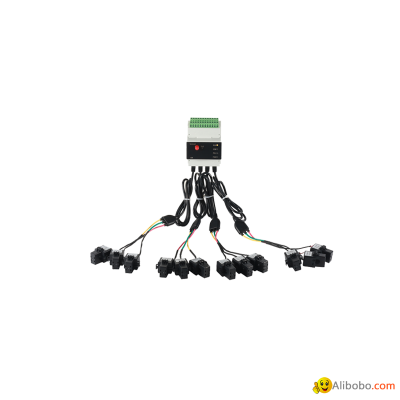

You can select the current input of the maximum four circuits. ADW2XX series wifi smart energy meter are connected by split core current transformer, and the wifi energy meter is easy to install on site, and realize remote wireless communication through wireless communication module.
Technical Parameters of ADW220
Voltage | AC 3×220V/380V | |
Current | AC 5A 100A ; (external split core current transfomers) | |
Frequency | 45～65Hz | |
Communication | RS485 Modbus-RTU; Baud rate 1200～38400 | |
Accuracy | class 1 | |
Function | LoRa wireless communication | |
measure 4 channels three-phase circuit. Each circuit has three CTs. | ||
ADW220-D10 | 1S | D10: aperature 10mm current specification :5A |
ADW220-D16 | 2S | |
ADW220-D24 | 3S | |
ADW220-D36 | 4S | |
Additonal function | /MTL: 12 channels external temperature measurement+4 channels residual current measurement | |
/MK: 12DI+4do | ||
Power supply | AC/DC 85～265V; Consumption≤10VA | |
If you want to buy wifi power meter, please contact us.
