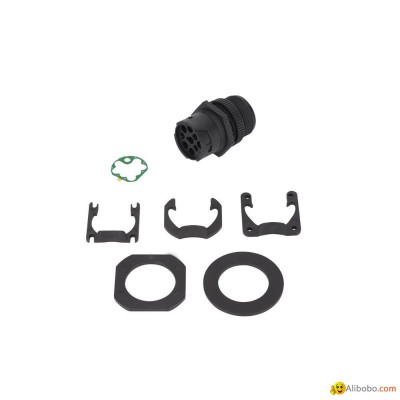

J1939 9PIN MALE ELD connector Kit j1939 ELD connectors kit For manufacture 9-Pin
Price:US $3.50 / pc
Product Description
| 9-Pin J1939 female connector | equivalent of Deutsch HD16-9-1939S-P080 |
| Type of 9-Pin J1939 female connector | Type 2 |
| Color of 9-Pin J1939 female connector | Green |
| Number of positions | 9 |
| Terminals | copper, nickel-plated or gold-plated |
| Number of terminals | 9 pcs |
| Contact type | crimp |
| Contact size | 16 |
| Mounting type | free hanging (in-line) |
| Fastening type | bayonet lock |
| Orientation | keyed |
| Housing material | PA66 + glass fiber |
| Grommet material | silicone |
| Working Temperature | −25℃ ~ +100℃ |
| Warranty | 1 year |
