Product Description

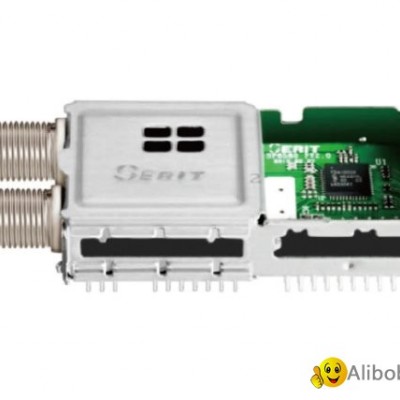

Model：SP5336 HF805
Features:
Frequency range:43~1002MHz
Sensitivity:-84dBuV- 10dBuV (ATSC 15Db, SNR)
+112dBuv~+30dBuv (64QAM-J.83 annex B)
+112dBuv~+37dBuv (256QAM-J.83 annex B)
Input impedance: 75ohm
IF Bandwidth: 6/7/8MHz
LOW IF or IF output: 4~8MHz, 44MHz/36MHz QAM (ANNEX B)
3.3V, 250Ma, 1.2V, 280mA
IIC bus interface
Parallel and serial data
Main Product
Model Name | chipset solusion | Remark | Chassis |
SP5336 | NEWPORT MEDIA+LG chip solution:MXL603+LGDT3306 | LOOP out high Gain | VERTICAL/HORIZONTAL |
HF805 | MXL608+MN88436 | LOOP out high Gain | VERTICAL/HORIZONTAL |
