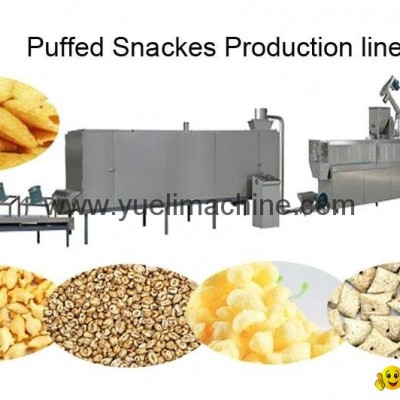

Puffed Snacks Production line

1.Description:

Puffed Corn Snack Food processing line is automatic high capacity production line. Its raw material is very wide. It can take corn powder, rice powder and wheat flour etc. grains’ powder as raw materials, through the Twin screw Extruder high temperature heating, high pressure extruding to make the materials finally puffed with smooth surface status. This processing line can produce all kinds of inflating foodstuffs, rice bread, rolling snacks, crackers, gruels, nutrient flour and so on according to change materials and mould.

 The processing line is foodstuff equipment researched and developed on the basis of international advanced technology. The performance and quality have reached the highest international level of the same line. From feeding materials, extruding and inflating, roasting, spraying to finished products are done once time with automation. We fill the gap of the first-class food produced with extruded and inflated technology.

a. Products:

This processing line can be used to produce many kinds of inflating food stuffs, such as various snacks food, rice bread, core-filled food, grain gruel, nutrient powder and bread crumbs.Variety shapes are available for ball, tube, stick, ring, fruit loop, star, wheel and flower and heart shape by adjusting the mould in the extruder

b. Function:

1) Capacity:100-150kg/h,  200-500kg/h
2) Raw material: such as corn, rice, wheat, oat, barley etc

c. Flow chart:

Mixing system---Extrusion system---- -Drying system----Flavoring system---Packing system

d. Voltage:

In China: Three phases: 380V/50Hz, Single phase: 220V/50Hz. We can make it according to customers’ Local voltage according to different countries.

e. Machines main feature:

All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.

1) Stable performance: adopting imported frequency or electromagnetic controlling system, high automation and smooth operation

2) Permanent working life: with special material and technology, the screw and nut

involved can work continuously for 1 year under conditions of high wear and pressure

2.Features Of Extruder:

a. The screws are made by alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.

b. The extrusion barrel is constructed of carbon steel, is made by #45 steel, stainless steel coating.

c. The gearbox has automatic lubrication function, with extends gear life.

d. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

e. SIEMENS(CHINA) brands electronic parts used in the controller box, make sure the extrusion process

perfect.

f. Main Motor from SIEMENS(CHINA), ensure its powerful extrusion and excellent performance.

3. about US

Jinan Yue Li Machinery Co., Ltd, is located in jinan city of Shandong provinces, one beautiful spring city. Since its inception, it' S Specializing in food machine, engraving machine and packing machine, the company mainly deal with the manufacture, research, development and sale   Of those machinery. According to the client' S different requirements, we can offer the whole complete equipments, all kinds of snacks/core flakes/pet food production line and so on.
The company has a group of professional and technical personnel, has a strong product development capabilities, advanced technology digestion and absorption ability, On the basis of leading technology, high credibility, high standard, high precision of product quality. With technology innovation as its   Mission, and constantly explore new technology, new technology, developed with advanced extrusion machine, On double screw extrusion machine has the international advanced level, has the domestic leading position.
Depending on our rich experience and professional experts on the   Food and oven and packing machine industry, we will offer the most suitable and complete program, which assures that your investment will get biggest profit.
Wish our products and technical support to lay a foundation for your career success. Hope we become permanent friends.

4. Our Service

1. Free consultation service before, during, and after sales;

2. Free project planning and design services;

3. Free installation and commissioning of equipment until everything is functional;

4. Free management of equipments' long distance shipping;

5. Free training of equipment maintenance and operating personally;

6. Free new production techniques and formulas;

7. Provide 1 year complete warrantee and life-time maintenance service;
