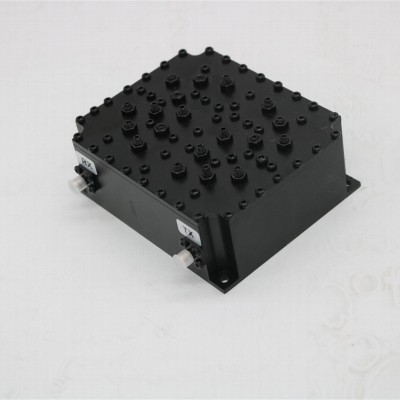

DU-3900520-S01

Electrical

Pass band

RX

TX

380-385MHz

390-395MHz

Insertion Loss

≤2.0dB

≤2.0dB

Pass band Ripple

≤1.0dB

≤1.0dB

Rejection

≥85dB@DC-370MHz

≥85dB@DC-385MHz

≥85dB@390-2000MHz

≥85dB@415-2000MHz

Isolation

≥85dB

VSWR

≤1.35

Power handing

60W(Average Power)

Impedance

50Ω

Environmental

Operating temperature

-25℃  to +70℃

Storage temperature

-40℃  to +85℃

Relative humidity

0-95%

Application

Indoor

Mechanical

Connectors

ANT/RX/TX:7-16 female,long neck

Dimensions

177mm×134mm×70mm（without connectors&mounting brachet）

Weight

1.8 Kg
