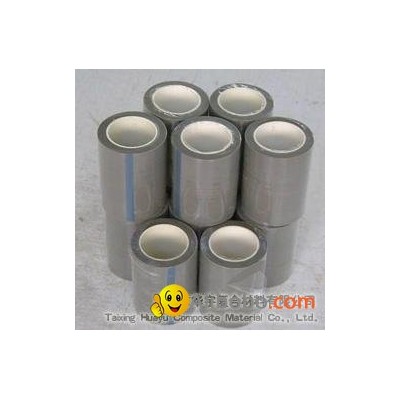

PTFE film tape, also named pure PTFE tape, is made from high performance PTFE film where we put the adhesive on the one side by special process.

1. Main capabilities and characteristics:
1) Superior release characteristics at high temperatures from -70 to -260 Celsius degree
2) Exceptionally flexible and adhesive to irregular surfaces
3) Good insulating capacity
4) Extremely low friction surfaces
5) Good chemical resistance
6) Easy to use and install, reusable, and own long using life

2. Specifications of PTFE film tape:
Item No Thickness Max Width Adhesive Strength
( to steel ) Tensile Strength Temperature
Resistance
(Celsius degree)
HY-TS8008 0.08mm 200mm 20N/100mm 300N/100mm -70260
HY-TS8013 0.13mm 250mm 25N/100mm 400N/100mm -70260
HY-TS8018 0.18mm 300mm 44N/100mm 650N/100mm -70260
HY-TS8025 0.25mm 320mm 58N/100mm 950N/100mm -70260
Memo: 1) thickness: Others can be customized
2) width: 3-1250mm
3) length: 10-50m
4) color: Grey

3. Applications of PTFE tape:
1) Heat sealing for food, medicines, and plastic bag
2) Coping with the adhesive of drying drum's surface of the drying machine, lining machine, and paper machine, the adhesive of the surface of running and compression roller,
3) Heat the plate, stripping the workpiece, filming all kinds of heat resistant rollers
4) Stickup of the gasket of the shooter, hopper, aircraft mould and etc.
5) Easy to use and install in the roller of cylinder machine. Directly stick to large-size flat surface and the regular and irregular curved surface. Avoid the inconvenience, technical and operational complexity, transportation problem for PTFE coating.
6) Suitable to other handling of all the surface that need non-adhesive, corrosion resistance, and heat resistance.
