Product Description

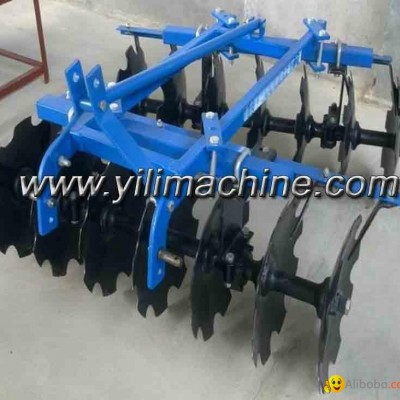

The machine is suitable for pulverizing and loosening clods after plowing and for planning the land before sowing on cultivated land, it can make soil and fertilizer mix up, and clean away the stump of plants. With the reasonable structure, the machine is durable in service, easy to be operated and maintained, etc.
1BQ-3.4 Light-duty off set disc harrow with 42 discs. it is suitable for pulverizing and loosening the land before sowing on cultivated land, it can make soil and fertilizer mix up and clear away the stump of plants.
Main Specifications
Model | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.4 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.3 | 1BQ-3.3 | 1BQ-3.4 | 1BQ-5.0 |
Overall dimension(cm) | 159*123 | 159*144 | 159*144 | 190*155 | 199*182 | 227*190 | 250*233 | 536*324 | 536*340 | 550**530 |
Working width(m) | 1.1 | 1.3 | 1.4 | 1.5 | 1.7 | 1.9 | 2.3 | 3.3 | 3.4 | 5.0 |
Working depth(mm) | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| 12 | 14 | 16 | 16 | 18 | 20 | 24 | 40 | 42 | 60 |
Dia. of disc(mm) | 460 | 460 | 460 | 460 | 460 | 460 | 460 | 460 | 460 | 460 |
Weight(kg) | 200 | 220 | 230 | 240 | 260 | 310 | 360 | 1090 | 1108 | 1520 |
Fitted power(kw) | 8.8 | 11 | 11 | 18.4 | 20.6 | 23 | 37 | 60~75 | 60~75 | 88 |
linkage | (Standard three-point mounted) | (Trailed) | ||||||||
