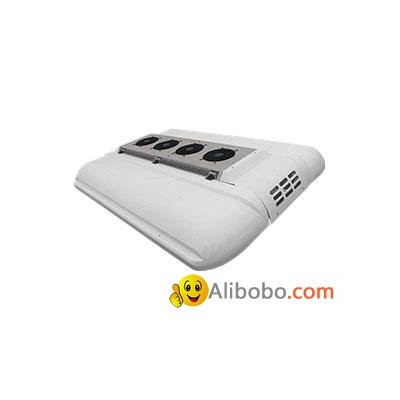

EZDS is a rooftop DC electric bus air conditioner driven directly by battery for 6 to 12m without DC-AC converter.
Model | EZDD-03 | EZDS-04 | EZDS-05 | EZDS-06 |
Vehicle Length | 6-7m | 7-9m | 8-10m | 10-12m |
Cooling Capacity(kcal/h) | 14000 | 24000 | 28000 | 32000 |
Heat Capacity(kcal/h) | 12000 | 22000 | 26000 | 30000 |
Evaporator Airflow(m³/h) | 3200 | 4000 | 6000 | 6000 |
Compressor | EVS-34 | 2*EVS-34 | 2*EVS-34 | 2*EVS-34 |
Size(mm) LxWxH | 2440*1630*240 | 2500*1920*270 | 2750*1920*270 | 3000*1920*270 |
Note: |
