Alternative Automotive Thinsulate acoustic insulator interior trimpicture1

Alternative Automotive Thinsulate acoustic insulator interior trim

USD $1.25 / Sqm 100Sqm (MOQ)
FOB Price:
Negotiable | Get Latest Price
Order Quantity:
1 Set / Sets
Supply Ability:
1000 Set / Sets per Month
Port:
shanghai
Payment Terms:
T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail:
5 days
Hot in store
Product Details

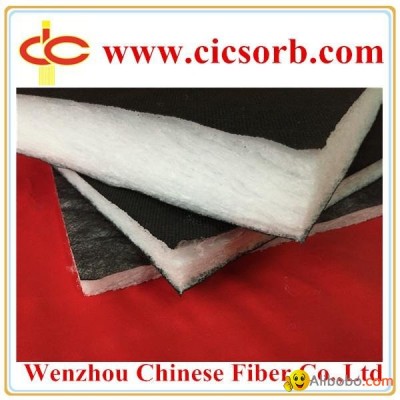

Microfiber PP PET acoustic insulator pads CIC-SM300L

CICSORB Acoustics is one of the word's largest producers of acoustical fiber insulation, and a leading producer of automotive fiber-based die cut and edge sealing products. CICSORB Acoustics is made by melt blowing micro-fiber including diameter 1-3 micron superfine fiber (Polypropylene) and 20-30 micron staple fibers (Polyester). The products has good performances of acoustic insulation, meanwhile it has more characteristics as: Environmental, Light weight, Hydrophobic, Compressible, Flexible installation etc. CICSORB Acoustics draws upon its expertise in fiber production, technical engineering and design innovation to provide world class automotive NVH Solutions.

General Properties

 Composition Web 65% Polypropylene + 35% Polyester
 Composition Scrim One side 100% Polypropylene fabric
 Color One side black scrim, both side Embossed
 Material Weight 350 ± 10 g/m2
 Material Thickness 18 mm ± 2 mm
 Density 17.0 Kg/m3
 Flammability 0mm/min (A-0)
 Heat aging 120℃ for 2000 Hours
 Tensile Strength MD: 9.0-10.0 N    CD: 10.0-12.0 N
 Moisture absorption ≤ 0.4%
 Heat Conductivity 0.032 W/m·K
 Dimensions 1.52 X 40 meters

Key benefits

· Reduces vehicle weight when compared with felt, foam and polyester materials.

· Easy to compress and highly conformable, enabling installation in smaller cavities.

· Production costs can be reduced as less material is required.

· Hydrophobic, non-woven structure allows both interior and exterior use without the need for a waterproofing barrier.

· Easily recycled as it is a Polypropylene blend the product resists mould and mildew growth so no odors or material degradation occurs.
