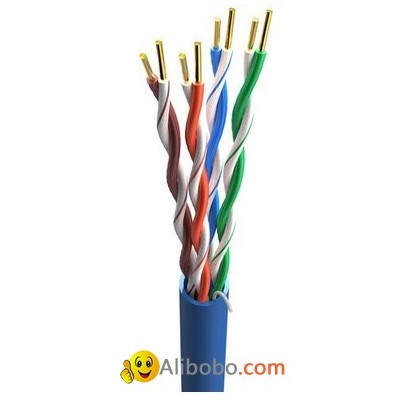

E230635 UL444 UTP CAT 5e 350MHz

USD $0.00

FOB Price：: Negotiable | Get Latest Price

Order Quantity：: 1 Set / Sets

Supply Ability：: 1000 Set / Sets per Month

Port：: shanghai

Payment Terms：: T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Delivery Detail：: 5 days

ZHEJIANG TIANJIE INDUSTRIAL CORP.

Business：



Hot in store

Product Details

Pair Identification

Pair 1 Blue/White ring & Blue

Pair 2 Orange/White ring & Orange

Pair 3 Green/White ring & Green

Pair 4 Brown/White ring & Brown

Characteristics

Installation Temperature: 0℃ to 60℃

Operation Temperature: -20℃ to 60℃

Capacitance: 14pf/ft nominal

DC Resistance/Unbalance: 28.6 ohms/1000’Max/5% Max Dielectric Breakdown: 2500 Volts DC Conductor to Conductor Velocity of Propagation: PE =71% FEP =74% nominal Maximum Skew:11ns@100 meters

Characteristics Impedance	1.0 – 100 Mhz	100 Ohms+15%
	100 – 155 Mhz	100 Ohms+18%
	155 – 200 Mhz	100 Ohms+19%
	200 – 300 Mhz	100 Ohms+22%
	300 – 350 Mhz	100 Ohms+24%

4) Electric Performance

MHz	(dB/100m) Max	NEXT	ELFEXT	(dB/100m) Min	(dB/100m) Min	NEXT	ELFEXT	ACR
MHz	(dB/100m) Max	(dB/100m) Min	(dB/100m) Min	(dB/100m) Min	(dB/100m) Min	(dB/100m) Min	(dB/100m) Min	(dB/100m) Min
0.77	1.8	70	69	NA	68.2	67	66	65
1	2	68.3	66.8	20	66.3	65.3	63.8	63.3
4	4	59.3	54.7	23	55.2	56.3	51.7	52.2
8	5.8	54.8	48.7	24.5	49	51.8	45.7	47
10	6.5	53.3	46.8	25	46.8	50.3	43.8	43.8
16	8.2	50.3	42.9	25	42	47.3	39.7	39
20	9.2	48.8	40.7	25	39.5	45.8	37.7	36.5
25	10.4	47.3	38.8	24.3	36.9	44.3	35.8	33.9
31.25	11.7	45.9	36.9	23.6	34.2	42.9	33.9	31.2
62.5	17	41.4	30.8	21.5	24.4	38.4	27.8	21.4
100	22	38.3	26.8	20.1	16.3	35.3	23.8	13.3
155	28.1	35.5	22.9	18.8	7.4	32.5	19.9	4.4
200	32.4	33.8	20.7	18	1.4	30.8	17.7	NS
300	41	32.3	17.2	16.8	NS	28.2	14.2	NS
350	44.9	30.2	15.9	16.3	NS	27.2	12.9	NS
