FTTx mini passive receiver with Filter EYDFA 64ports, factory price 6 motor spli
USD $0.00
1 (MOQ)
- FOB Price：
- Negotiable | Get Latest Price
- Order Quantity：
- 1 Set / Sets
- Supply Ability：
- 1000 Set / Sets per Month
- Port：
- shanghai
- Payment Terms：
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- Delivery Detail：
- 5 days
Hot in store
-
optical patch cord sc/upc-lc/upc pigtail
Inquiry -
Fast field connector splice-on mechanic
Inquiry -
Gpon SM G652D outdoor cable GYFXTY facto
Inquiry -
Fiber distribution box SC/APC plc splitt
Inquiry -
CWDM power meter light source factory,op
Inquiry -
LC/UPC patch cord pigtail drop cable 1 f
Inquiry -
FTTH distibution box removable lock FODB
Inquiry -
FTTx mini passive receiver with Filter E
Inquiry
Product Details

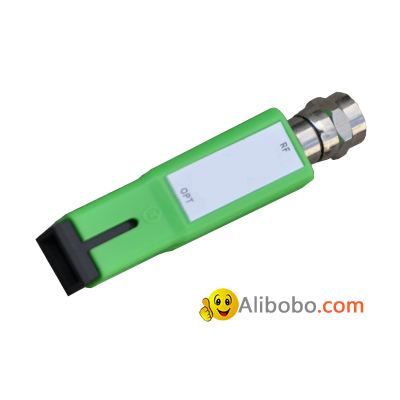

OR1000 is a newly designed novelty receiver for special demand in CATV industry. It realizes cable analog/digital signal to end users through plug and play operation without any power supply. It adopts high sensitivity optical receiving tube, when receiving at -9dBm, analog level at 50dBuv (digital level 40-42dBuv), no power, consumption, economic, flexible, especially for remote use. OR1000 for multiple wavelength, while OR1000D for 1550 receiving.
Features:
> E/O converter, working time more than 150,000hours
> F metric, Inch, Female, F plug, RF output interface optional
> Low receiving power, single or multiple wavelength, plug & play
> No power supply, zero consumption, save and energy
Specification
| ITEM | Unit | OR1000 | OR1000D | |
| Optical | Working wavelength | (nm) | 1200/1600 | 1540～1565 |
| Channel Isolation | (dB) | / | ≥22 | |
| Responsivity | (A/W) | ≥0.85/≥0.9 | ||
| Receiving power | (dB) | +6～-9（recommend -1～-4） | ||
| Reflection Loss | (dB) | ≥50 | ||
| Connector | SC/APC or SC/UPC（recommend SC/APC） | |||
| RF | Bandwidth/Flatness | MHz/dB | 47-1000/≤±1 | |
| Output Signal level | dBuv | 90±1/(+2～-10dBm) | ||
| output level | dB | 66(0dBm receiving）-48(-9dBm receiving) | ||
| Reflection loss | dB | ≥14（75Ω） | ||
| RF output port | F metric, Inch, Female, F plug, RF | |||
| CNR/MER | dB | ≥44/≥32(NTSC80CH,OMI3.8%，-9dBm) | ||
| CTB/CSO/HUM | dB | ≥70/≥66/≥60（-3dBm/60dBuv） | ||
| Other | Power supply | V/W | External AC155～255V→DC12,/5 | |
| Work/Storage Temp. | ℃ | -30～55/-40～75 (Humidity 5~90%) | ||
| Size | mm | 50×15×12 | ||
Application:
> FTTx system
> PON network
