optical patch cord sc/upc-lc/upc pigtail factory, fujikura splicer toolkit

USD $0.00 1 (MOQ)

FOB Price：: Negotiable | Get Latest Price

Order Quantity：: 1 Set / Sets

Supply Ability：: 1000 Set / Sets per Month

Port：: shanghai

Payment Terms：: T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Delivery Detail：: 5 days

HANGZHOU SHINING COMMUNICATION TECHNOLOGY CO., LTD

Business：



Hot in store

Product Details

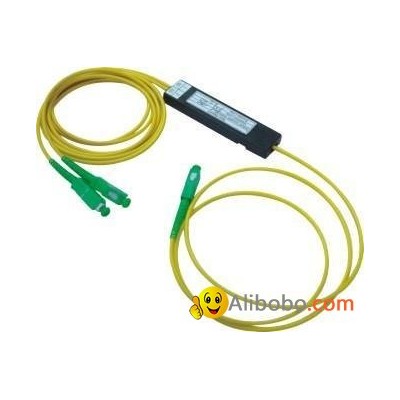

Optical coupler FBT-S-D-1x2, SM, dual window,broadband, G652D, tree structure, 1x2, 1310/1550±40nm, steel tube (90x20x10mm), 3.0mm fiber cable, 1m pigtail, SC/APC or FC/APC connector.

Features:
> Different combinations of coupling ratio

> Low crosstalk & excess loss

> High optical return loss

> Available in dual wavelength operation

> Optional connectors termination upon request

> Available in 250um & 900um fiber, 2mm or 3mm jacket optical cable

> Operating wavelength: 1,310nm or 1,550nm, and other wavelength is available on requests

> Coupling ratio: 10/90, 20/80, 30/70, 40/60, 50/50, and customized ratios are available

> FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC fiber optic connectors optional

Parameter

Item	Specification
Item	Standard	Wavelength Flattened	Broadband
Center wavelength	1310 or 1550 nm	1310 or 1550 nm	1310 & 1550 nm
Bandwidth	±20 nm	±40 nm	±40 nm
Coupling ratio	1 ~ 50%
Typical insertion loss	≤3.2 dB
Typical excess loss	≤0.15 dB	≤0.20 dB	≤0.20 dB
PDL	≤0.10 dB	≤0.15 dB	≤0.15 dB
Directivity	≥60 dB
Connector	FC/APC or SC/APC, others for client specify
Temperature stability	≤0.002 dB/℃
Operation temperature	-40 ~ +70℃
Storage temperature	-40 ~ +85℃
Dimension	90 x20 x10mm plastic box
