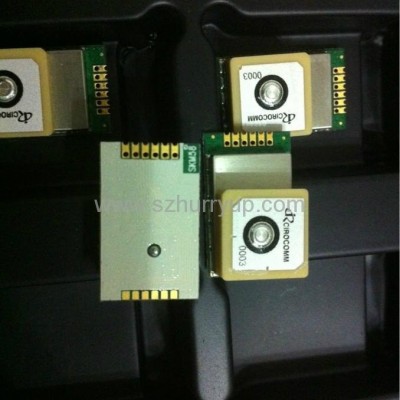

skm58 gps module with antenna

USD $17.00 / pc 10pc (MOQ)

FOB Price：: Negotiable | Get Latest Price

Order Quantity：: 1 Set / Sets

Supply Ability：: 1000 Set / Sets per Month

Port：: shanghai

Payment Terms：: T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Delivery Detail：: 5 days

Shenzhen Hurryup Technology Co., Ltd

Business：



Hot in store

Product Details

The Skylab SKM53 Series with embedded GPS antenna enables high performance navigation in the most stringent applications and solid fix even in harsh GPS visibility environments.

It is based on the high performance features of the MediaTek 3329 single-chip architecture, Its –165dBm
tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment
where the GPS was not possible before. The 6-pin UART connector design is the easiest and convenient solution to be embedded in a portable device and receiver like PND, GPS mouse, car holder, personal,locator, speed camera detector and vehicle locator..

Features

Ultra high sensitivity: -165dBm

22 tracking/66 acquisition-channel receiver

Internal back-up battery

NMEA-0183 compliant protocol or custom protocol

Operating temperature range: -40 to 85℃

Embedded patch antenna 18.2 x 18.2 x 4.0 mm

Small form factor: 30x20x11.4mm

RoHS compliant (Lead-free)Performance Specification

Performance Specification

Parameter	Specification
Receiver Type	L1 frequency band, C/A code, 22 Tracking / 66 Acquisition-Channel
Sensitivity	Tracking Acquisition	-165dBm -148dBm
Accuracy	Position Velocity Timing (PPS)	3m CEP without SA 0.1m/s without SA 60ns RMS
Acquisition Time	Cold Start Warm Start Hot Start Re-Acquisition	36s 33s 1s <1s
Power Consumption	Tracking Acquisition Sleep/Standby	<30mA @3.3V Vcc 40mA TBD
Navigation Data Update Rate	1Hz
Operational Limits	Altitude Velocity Acceleration	Max 18,000m Max 515m/s Less than 4g
