Product Specifications /Features

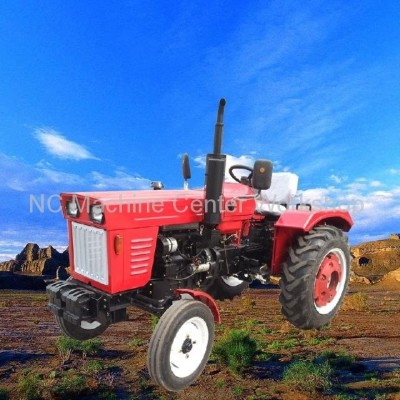

Tractor Model TS400
Tractor Type 4x2
Overall dimentions: 3280x1450x2110
Construction weight (KG) 1500
Rated Traction Force (KN) 7.8
Front wheel tread (mm) 1121-1527(Adjustable)
Rear wheel tread (mm) 1104-1504(Adjustable)
Wheel base(mm) 1960
Min. Land clearance (mm) 485

Engine
Engine model JDM490
Type 4 Cylinder, in-line, water cooling, 4 strokes, direct injection
Bore & Stroke(mm) 90 &105
Rated revolution (r/min) 2300
Rated power (kw/HP) 29.4 (40)
Max. Torque (n. M) 151
Speed of Max. Torque (r. P. M) 1800
Fuel Consumption(g/kw. H) 245
Oil Consumption(g/kw. H) 2.04

Transmission
Clutch Dry type, single-stage
Gear box Spur gear (4+1)x; 2, plain compound type
Differential Two planet bevel gear, closed
Main Drive Spiral bevel gearing
Final Drive Spur gear, External gearing

Working Device
Lifter tilling depth control Draft and Positional adjustable lifter
Max. Lifting capacity (KN) 6.62
Suspension type Postposition, Three point, I category
Speed of P. T. O(r/min) 540, 750
P. T. O. Power (kw) 26.4
Steering Type Front wheel steering, power steering
Brake System Locking footboard shoe type
OPTIONS: Backing Mirror, Roll Bar, Canopy, Streamline hood, Front & Rear ballast

Competitive Advantages

Well and High Quality Control ,
Customer's Design and Logo are Welcome ,
Competitive Prices

Buyer Keywords
TS400, 40HP Tractor, Farm tractor, Wheel tractor, Agro tractor
