Tantalum Carbide - Niobium Carbide Solid Solution Powder

USD $0.00

FOB Price：: Negotiable | Get Latest Price

Order Quantity：: 1 Set / Sets

Supply Ability：: 1000 Set / Sets per Month

Port：: shanghai

Payment Terms：: T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Delivery Detail：: 5 days

SHANGHAI JIANGXI METALS CO., LTD.

Business：



Hot in store

Product Details

Tantalum Carbide (TaC) + Niobium Carbide (NbC) Solid Solution Powder or Tantalum Niobium Solid Solution Carbide

Chemical composition:

Elements	TaC	TaC : NbC	TaC : NbC	TaC : NbC	TaC : NbC	TaC : NbC	TaC : NbC	TaC : NbC	NbC
	100	90 : 10(9:1)	80 : 20(8:2)	75 : 25	70 : 30(7:3)	60 : 40(6:4)	50 : 50(5:5)	2 : 1	100
	%	%	%	%	%	%	%	%	%
Ta	Balance	83.2- 85.2	73.8- 75.8	69.4 - 71.4	64.8- 66.6	55.1- 57.1	45.8- 47.8	58.3- 58.7	1.00 max
Nb	0.250 max	8.20- 9.60	16.7- 18.7	21.0 - 23.0	25.7- 27.5	34.4- 36.4	43.3- 45.3	25.8- 26.0	Balance
Carbon Total	6.10 - 6.30	6.5 - 6.90	7.00- 7.40	7.35 - 7.65	7.50- 7.90	8.00- 8.40	8.50- 8.90	7.70- 8.10	11.0- 11.4
	or Carbon Total is included in the following ratio :
TaC	99.5 min	89.7- 92.1	80.8- 83.2	76.75 - 79.05	72.3- 74.5	63.1- 65.5	54.3- 56.7	66.2- 66.6	1.00 max
NbC	0.250 max	14.7- 16.5	23.7- 26.1	28.35 - 30.65	33.2- 35.4	42.4- 44.8	51.8- 54.2	33.5- 33.9	99.00 min
Carbon Total	included	included	included	included	included	included	included	included	included
Carbon Free	0.150 max	0.150 max	0.150 max	0.150 max	0.150 max	0.150 max	0.150 max	0.150 max	0.150 max
Al	0.010 max	0.010 max							0.020 max
Ca	0.020 max	0.010 max							0.020 max
Fe	0.100 max	0.100 max							0.150 max
K	0.002 max	0.002 max							/
N	0.050 max	0.050 max							0.050 max
Na	0.002 max	0.002 max							/
O*	0.250 max	0.250 max							0.250 max
S	0.010 max	0.010 max							0.010 max
Si	0.010 max	0.010 max							0.010 max
Ti	0.010 max	0.010 max							0.010 max
W	0.010 max	0.010 max							0.010 max
FSSS Size	Fine size			0.8 - 1.0 micron		O 0.35%Max
	Standard size			1.0 - 2.0 micron		O 0.25%Max
	coarse size			2.0 - 3.0 micron		O 0.20%Max

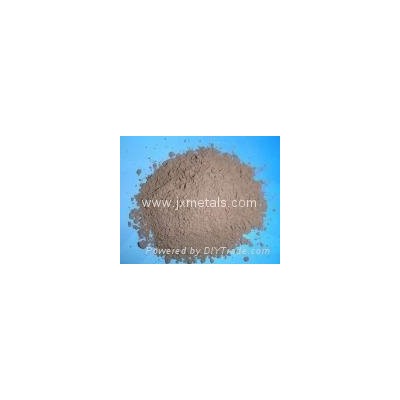

Appearance: In powder with yellow-brown color.
Application : Tantalum Carbide (TaC) and Niobium Tantalum Carbide (NbTaC) are used as additives mainly for P-type cutting tools and cermets because of the beneficial effect on hot hardness and toughness. Therefore these products are homogeneous mixed crystals with
high purity and narrow particle size distribution. Tantalum Carbide (TaC) and Tantalum Niobium Carbide (TaNbC) are usually used as an additive to *WC-Co ready-to-press (Tungsten-Carbide-Cobalt RTP) grade powders in order to enhance the physical properties of the sintered structure of hardmetals and alloys. TaC and TaNbC are frequently used in steel cutting grade powder attritions to maintain structure edge strength at high temperatures. In addition, TaC can be used as a grain growth inhibitor preventing the formation of large grains and increasing the hardness of the sintered part.
(* Tungsten Carbide powder (WC or WCP) is produced by carburization in a hydrogen atmosphere with a mixture of tungsten metal powder and pure black carbon, which is used to manufacture Cemented Tungsten Carbide - Cutting Tools, Wear Parts, Roll & Die, Diamond Tools, Mining Tools etc.)

We co-carburizes Tantalum Pentoxide (Ta2O5) and Niobium Pentoxide (Nb2O5) to manufacture Tantalum Niobium Carbide (TaNbC) powders with a wide range of metal ratios. Tantalum Niobium Carbide (TaNbC) powders can be tailored to customer's requirements.

Packing: Packed in iron drums of 25kg~50kg net each with inner sealed double covers plastic bottle of 3~5kg net each.

Trade name: Tantalum Carbide (TaC) + Niobium Carbide (NbC) Solid Solution Powder, Niobium Carbide (NbC) + Tantalum Carbide (TaC) Solid Solution Powder, Tantalum Niobium Solid Solution Carbide, Tantalum carbide, tantal carbide, tac, tant carbide, ta carbide, cemented carbide powder, cemented carbide additive, hard alloy additive, tantalum alloy additive, tungsten carbide powder+cobalt powder+niobium carbide powder+tantalum carbide powder ready-to-press powder, etc.,
