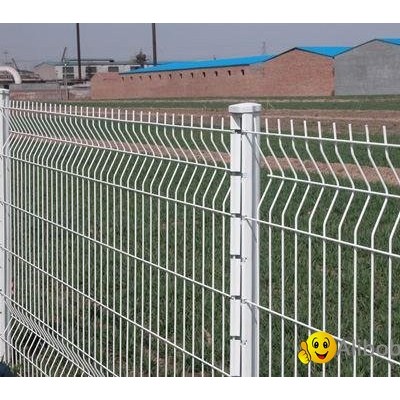

High quality wire mesh fence 3D curved wire fence with popular style
Details
Type : Fencing & Gates Place of Origin : Hebei China Brand Name : XT
frame Finishing : Powder Coated metal Type : Iron frame Material: metal
Wire diameter : 4-6mm opening : 200*50mm lenght: 1.5-2-2.5m
height : 1.53-1.73-2.03m surface treatment: Hot Galvanized Packing : in pallet
(1) High Anti-Corrosion
Surface treatment | Min. | Max. |
electro gal. | 20g/m2 | 60g/m2 |
hot dipped gal. | 35g/m2 | 500g/m2 |
powders sprayed coating | 160microns | 240microns |
pvc/pe dipped coating | 600microns | 1000microns |
(2). Usage:
It can be used in highway, railway, raod, city transit, Factory zone, industry zone, private grounds, public grounds.
(3) Popular Specification
Wire Dia. |
Mesh Size |
Panel Width |
Panel Height |
Fold No. |
Posts height |
Post Model | |
Fix I |
Fix II | ||||||
3.5mm 4.0mm 4.5mm 5.0mm | 100x50mm 100x55mm 120x55mm 150x55mm | 2.0m 2.255m 2.5m 3.0m | 800mm | 2 | 1200 | 900 |
.
Model No. |
1000mm | 2 | 1400 | 1200 | ||||
1200mm | 2 | 1600 | 1400 | ||||
1500mm | 3 | 2000 | 1700 | ||||
1700mm | 3 | 2200 | 1900 | ||||
2000mm | 4 | 2500 | 2200 |
(4). Post: Hot dipped Galvanized and powders coating.
Size: 60x60x1.5mm, 60x60x2.0mm, 60x40x1.5mm, 60x40x2.0mm, 48mm x 1.5mm and others.
Height: 300 - 700mm more than panel's height, or same as the panel and with the bottom base.
(5) We can provide free samples for Guests.
