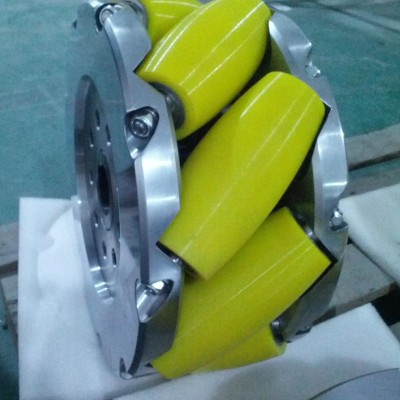

With a series of rollers attached to its circumference, these rollers having an axis of rotation at 45° to the plane of the wheel in a plane parallel to the axis of rotation of the mecanum wheel. Depending on each individual wheel direction and speed, the resulting combination of all these forces produce a total force vector in any desired direction. thus allowing the platform to move freely in the direction of the resulting force vector, without changing of the mecanum wheels themselves.It is perfect for tight space.These wheels are sold in assembled units, with many rollers per wheel. Each roller is a heavy-duty wheel itself.These offers capacity up to pounds at least.Typical applications include Material handling, table lift, and Heavy dusty vehicle etc.Especially in warehousing andlogistics,could improve efficiency and promote the development of the industry.Mecanum wheel would have a huge technological revolution.

Specifications:

·Diameter: 375mm(15inch)

·Width: 170mm

·Number of Rollers: 9

·Number of Plates: 2

·Body material: steel

·Roller material: Polyurethane

·Net weight: 71kgx4

Load capacity:4500kg/SET
