low pressure filter

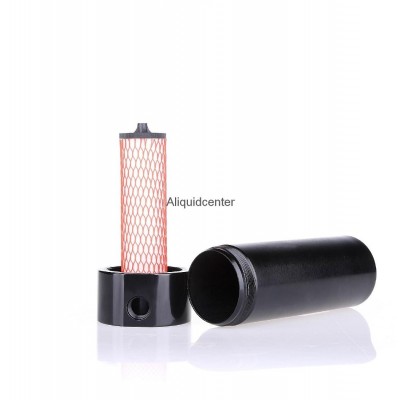

LOW-PRESSURE FILTER INTRODUCTION

Brief introduction

The low- pressure filter is installed in the system of low pressure pipeline of LNG and CNG. It can filter solid particles and jelly-like substance in the working medium, hence the working medium effectively avoids being polluted.

Parameter

The maximum working pressure: 35 bar

Blasting pressure: 100 bar

Working temperature:  -40°C~~~120°C

The filter housing material: high-strength aluminum alloy

O-ring material：        NBR

The filter element：     composite fiber

In-let thread：          M18*1.5

Out-let thread：         M18*1.5

The filtering precision：   0.3 um

Filtration efficiency：     99.99%

Characteristic

-High filtering precision

-Little loss before/after filtering

-Layered filtering, safe and reliable

-Function of separating oil and gas

-Surface processed specially, the filter’s shape shows generous and beautiful-Housing uses the high-strength aluminum alloy

Usage

-Installed in the system of low pressure gas pipeline of LNG and CNG. It can filter solid  particles and jelly-like substance in the working medium, hence the working medium  effectively avoids being polluted.

-Can improve the filtering efficiency by using the material of composite fiber.

-Given the use of cast aluminum, the filter’s shape shows generous and beautiful appearance   after processing.

Remark

-Aliquid center has the certificate of authorized patent of utility.

-You need to understand and test the filtration efficiency of the product in line with the  actual need before you use this  product.

-Use within the working temperature, otherwise, unexpected result might be caused.
