The raw material can be tempered carbon steel, stainless steel, or induction hardened bearing steel where a high hardness is required. Our chromed bars are widely used in many applications, such as hydraulic and pheumatic cylinders, guide shafts, pistons, etc. Metric Dia. Range 6mm - 150mm Imperial Dia. Range 1/4" - 6" Dia. Tolerance Upon request Chrome Thickness 15μm (or specified by customer) Surface Roughness (Ra) max. 0.4μm Straightness Tolerance max. 0.10mm/1000mm Roundness max. 3μm Surface Hardness 45 HRC as tempered; 62 HRC as induction hardened Steel Grade CK45/C1045, AISI304, 316L, 420, 440C, 42CrMo4, SAE52100(100Cr6)
Sprockets-Gear Hobbing & Grinding
we offers a full line of sprockets for applications calling for smooth and efficient roller chain drive.
Gears-Gear Hobbing & Grinding

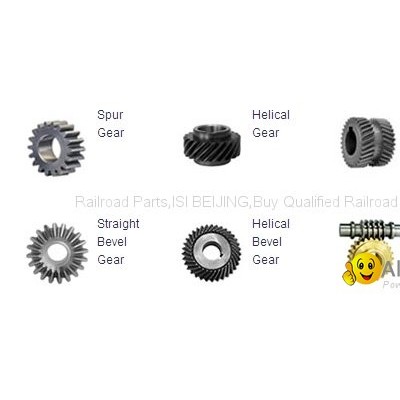

we provide spur gears, bevel gears, helical bevel gears, worms and worm gears. Apart from conventional CNC hobbing, we provide world class grinding services ranging from Module 1 (25DP) to Module 17 (1.5DP) up to Φ711mm in diameter.
