| No. | Item | Parameter |
| 1 | operating voltage range（DC） | (9.0～16.5) V |
| 2 | operating voltage （DC） | (12.0±0.1) V |
| 3 | operating current | Inom≤350mA |
| 4 | stall current | Islip≤500mA |
| 5 | running time | (4.0～10.0) s |
| 6 | operating temperature range | (-40～80) ℃ |
| 7 | life endurance | 23℃±2℃ 8000 cycles 80℃±2℃ 2500 cycles -40℃±2℃ 2500 cycles 40℃±2℃ 98%RH 2000 cycles |
| 8 | manual torque | ≥3.0 N.m |
| 9 | electric torque | ≥1.0 N.m |
| 10 | travel angle | vertical（20±1）° horizontal（20±1）° |
| 11 | sound level | ≤65dB(A) Distance=500mm |
| 12 | free play | ≤0.4° |
| 13 | load capacity | 750g |
Factory Information
| Factory Location: | Ningbo |
| Factory Size: | 10000 sqm to 250000 sqm |
| No. of Production Lines: | 20 |
| No. of R&D Staff: | 10- 20 people |
| No. of QC Staff: | 30 - 50 people |
| Certificates: | ISO/TS16949 3C,SGS, ISO14001 and GB/T28001. |
| Contract Manufacturing: | OEM Service Offered |
| The Company | Ningbo Jingcheng Car Industry Co., Ltd |
| The contact | kerry |
| The Address | Panhuo Industry Area, Zhong He Street, Yin Zhou District, Ning Bo City, Zhe Jiang Province |
| The Website | https://www.alibobo.com/com/ningbo593/ |

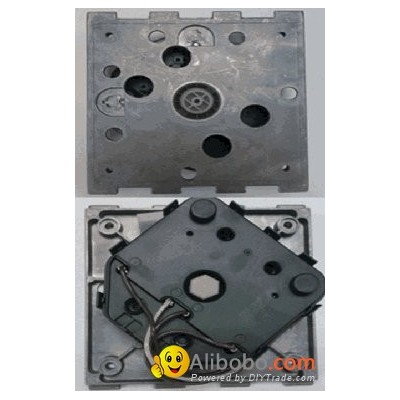

Electric Mirror Actuator for Rearview Mirror
