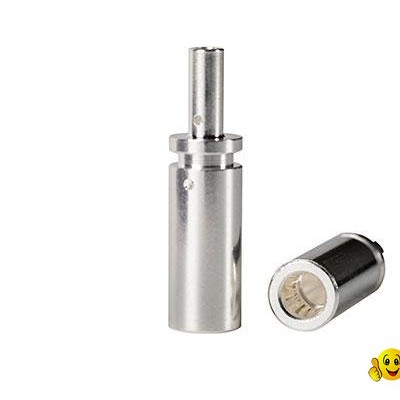

The high-performance contact system of crown spring pins is able to maintain the reliability of the electrical contact in the intense vibration environment. The manufacturing process is simple, and each plate in the elastic ring is independent. The crown spring design has low contact resistance and mild pulling force.
Features of Crown Spring Pins
Mechanical life: ≧10000 times
High mechanical durability
Stable mating force and low contact resistance
High reliability and vibration resistance
Application: Clean energy electric vehicle、Energy storage and so on
Specifications of Crown Spring Pins
Product | Dimension(Ø) | Rated | contact | Pulling |
code | (mm) | Current ≦(A) | Resistance ≦(mΩ) | force≤ (N) |
AP-CS-30 | 3 | 30 | 0.2 | 9-Mar |
AP-CS-60 | 6 | 60 | 0.15 | 21-Jul |
AP-CS-150 | 8 | 150 | 0.1 | 30-Oct |
AP-CS-200 | 10 | 200 | 0.8 | 15-45 |
AP-CS-250 | 12 | 250 | 0.8 | 15-45 |
AUPINS is an innovative team specializing in the R&D and production of pins and connectors.
If you want to know more information about energy storage connector,please contact us.
