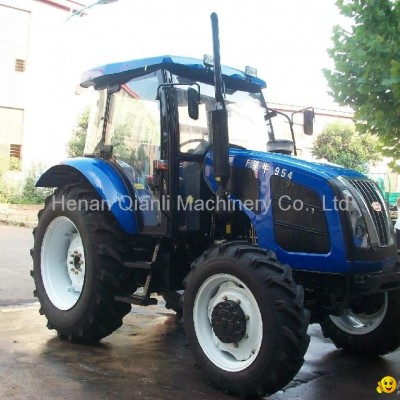

♦QLN954--Technical parameters of QLN954 farm tractors
| Basic configuration | |||
| Model | QLN-950/954 | ||
| Dimensions | Length×Width×Height(mm) | 4280×2085×2925 | |
| Wheel Tread(mm) | Front Wheel(mm) | 1610—1820(4WD) 1520—1820(2WD) | |
| Rear Wheel(mm) | 1620—2020 | ||
| Min.Ground Clearance(mm) | 370—450 | ||
| Dry Mass | With Cab(kg) | 3635(2WD) 3785(4WD) | |
| Without Cab(kg) | 3420(2WD) 3570(4WD) | ||
| Engine | Trade Mark or Brand | YTO/YUCHAI | |
| Engine Model | Vertical Water Cooled 4-stroke | ||
| Directly Injection | |||
| Number of Cylinder | 4 | ||
| Cooling System Type | Water Cooled | ||
| Rated Power(kw) | 70KW | ||
| Max. Torsion(N.M) | 375 | ||
| Rated Speed(r/min) | 2300 or 2400 | ||
| Fuel Tank | Volume(L) | 150 | |
| Transmission System | Clutch | Single,Dry,Dual Stage Type | |
| Gear Box | F16+R8/F16+R8(creeper gear) | ||
| Differential | Closed 4-planetary Gears | ||
| Differential Lock | Mechanical Sliding Sleeve | ||
| Braking System | Wet Double Plate Disc Brake | ||
| Running System | Tyre Model | F/R(2WD) | 6.5—20/16.9—34 |
| F/R(4WD) | 11.2—24/16.9—34 | ||
| Steering System | Hydraulic Wheel Steering | ||
| Working Device | Hydraulic System Type | Positive lifter | |
| linkage Type | II Rear Mount 3-point linkage | ||
| PTO(Standard) | φ38,8teeth φ35,6teeth | ||
| PTO Speed(r/min) | 540/1000 | ||
| Drawbar Type | Fixed Drawbar/Swing Drawbar | ||
| Optional configuration | |||
| Cab | AC | Heater | Air-brake |
| Adjustable Seat | Multiple Unit Valve | ROPS | Sunvisor |
| Double Crush Lifter | Radio | CD Player | Paddy Tyre |
| Bob-weight | Frontballest | 11×20=220kg 20kg/pcs | |
| Rearballast | 2×80=160kg 80kg/pcs | ||
| Paddy Tyre | F/R | 11.2—24/12.4—24 | |
| F/R(optional) | 13.6—28/16.9—34 | ||
♦Features of QLN 80A series(including QLN954) farm tractors
1. This series tractors with strong power, compact structure, advanced design, and
complete function.
2. Equipped with good quality engine YTO, Yuchai or LOVEL showing advanced capacity, low fuel consumption and high economic efficiency.
3. Updated streamlined hood with good heat abstraction.
4. It has flat floor, right side installed operation system, all these characteristics
makes operation comfortable and efficiency.
5. 150L enlarged fuel tank, ensure long working time.
6. F16+R8 (optional 8+4) Transmission type, with reasonable matching of gear position and
strong agricultural adaptability.
♦QLN 95hp tractor--about us
We are one of the famous professional tractor manufacturer in China, and sales over 6000 sets in our country every year.
Many models of our tractor can be with EEC/CE/ISO for abroad markets.
we offer a full line of farm equipments, such as farm tractor ,garden tractor or lawn tractor,tractor implements,etc.We offer best price products with highest performance cost ratio.
We have full range of tractor implements for your choice such as front end loader, backhoe, snow blower, wood chipper, rotary tiller , plow, harrow, trailer, baler,etc.
We provide one-stop service for you, and let your purchase more quickly and more safety!!!
If you are interested in our tractors, please tell us horse power and quantity.We will recommend the most suitable models.
♦QLN 95hp tractor--Contact us
Add：South Circular Road, Weishi Industrial Cluster Area, Kaifeng, Henan, China (Mainland)
Tel: 86-0371-55051327
Mobile: 86-132-5339-9912
Skype: Sherry00821
Website: http://hnqianli.en.alibaba.com http://en.qljx.com.cn
based on agricultural machinery For the benefit of millions peasants
| The Company | Henan Qianli Machinery Co., Ltd |
| The contact | Jason Yang |
| The Address | Address:South Circular Road, Weishi Industrial Cluster Area, Kaifeng, Henan, China (Mainland) |
| The Website | https://www.alibobo.com/com/henanq/ |
