bucket elevator

Introduction

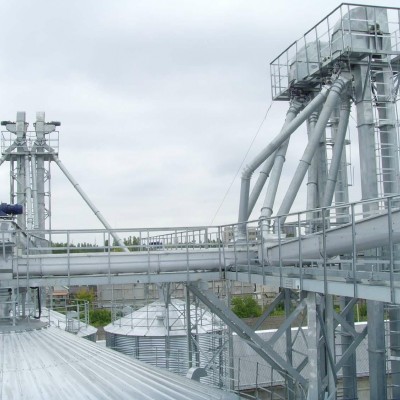

TDTG series elevator is bucket elevator used for vertical elevate transport powdery, granular, small piece material, widely applied to oil, feed, flour industrial. Compared with other series models, with a small size, beautiful appearance, large transport capacity, sealing, and can be self-sustaining, it is an ideal transportation equipment.

Characteristic

1. The life cope is wide. Bucket elevator have less demanding on the types of materials and features. It can hoist the powder, granular and massive materials.

2. Big capacity. the series of bucket elevator has a variety of specifications. The lift range is 10-800m3/h.

3. Small power consumption. Use intensive layout of the large-capacity transportation. Chain speed medium, to enhance the amount of the capacity. So driving low energy consumption.

4. Long service life

5. High hoisting height. The series of chain hoist speed moderate, smooth operation, and adopts the plate chain high strength wear resistant chain, so can reach high hoisting height (up to 40-50m)

6. Good sealing, less environment pollution

7. Operation, convenient maintenance, less wearing parts

Structure

Structure includes: Bucket Belt, Head wheel, bucket, head, booth, transporting wheel, tension device, input bucket, exiting mouth, spile plate

The bucket elevator head. Head wheel with rubber

The grain bucket elevator buckets (HDPE buckets)

The bucket elevator belt (rubber belt or nylon belt)

TDTG Series bucket elevator specifications
