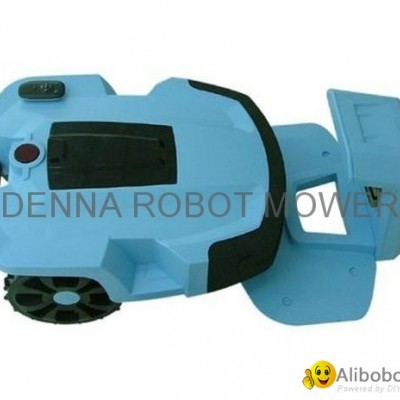

Newest Denna robot mower L600p with CE/EMC/ROHS

1, Slope over 30 degree slow down

2, Safety protection, 6 errors automatically alarm

3, Water-proof function

4, Automatic weather protection

5, Obstacle deceleration and automatic obstacle avoidance

6, Automatically homeward charging

7, Time switch, appointment mowing

8, Remote control

9, Infrared detection function

10, Tool free to change and adjust the height of mowing

11, Pin code protection

12, Software upgrading function

13, Mowing mode: random linear motion and evolvent motion

14, Programmable

15, Robot automatically stops if charging station or wire’s power cut off

Parameters:

Machine size (L*W*H): 65*48*28 cm

Weight: 22 Kg

Input Voltage: AC 110-240V, 50/60Hz

Output Voltage: DC 24V

Charging system: fully automatic ( L600 + C600 + L600 plus)

L600r/C600r

Battery: 2 PCS, Lithium/ Lead-acid, 24V, 8Ah

Charging time: 4-7 hours by manual

Average working hour: 2.5-4 hours (different from lawn)

No charging station, no virtual wire, no mowing area limited

only for remote control function, no automatic function.

It is liked by people who want to mow lawn by remote control, more interesting，more competitive price

L600/C600

Battery: 2 PCS, Lithium/ Lead-acid, 24V, 8Ah

Charging time: 4-7 hours

Average working hour: 2.5-4 hours (different from lawn)

Max mowing area: about 2500㎡

Best mowing area: ≤700㎡(only one day)

Mowing area for once full charging finished: 300-350㎡

L600 plus ---Newest item

Battery: 2 PCS, Lithium, 24V, 16Ah（Pioneer in China）

Charging time: 7-8 hours

Average working hour: 6-8 hours (different from lawn)

Max mowing area: 4500-5000㎡

Best mowing area: ≤1200㎡(only one day)

Mowing area for once full charging finished: 1000-1200㎡

Blade type: thin manganese steel, 4-pivoting blade rotary disc

Blade motor: DC, brush

Blade stop: 2s

Lift auto-stop sensor: Yes

Tilt auto-stop sensor: Yes

Emergency switch: Yes

Climbing inclination: ≤30°

Remote effective range: ≤15m

Noise: ≤65dB

Mowing motor power: 60W

Blade rotate speed: 3200 R/M

Walking motor speed: 4200 R/M

Average walking speed: 0.3-0.5 M/s

Lawn remain height: 3-6cm, adjustment

Mowing width: 24cm

Standard length of wire: 100M*0.75mm(L600r +L600); 150M*0.75mm(L600 plus)

Color: blue, yellow, dark grey now, can use others as you like

Certificates: SGS/CE & EMC, Intertek /RoHS, TUV/WEEE & Noise report and ISO 9001:2008, with GS & UL adaptor

Patent: product designpatent“Transformers”
