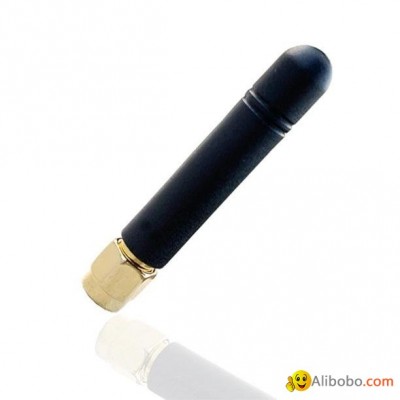

The 2.4GHz Whip Antenna is suitable for the 2.4GHz system.
The antenna is vertically polarized with an omnidirectional radiation pattern.
These antennas are mounted directly onto the 2.4GHz product and are intended for demonstration use or short-range communications only.
The linear polarized antenna can be made very small and light weight, especially useful for weight-critical applications.
Specifications of 2.4GHz 90 degree wifi antenna
Electrical
Frequency Range | 2400-2483MHz |
Band width | 83MHz |
Gain | 2.5dBi |
V.S.W.R | ≤1.8 |
Radiation | Omni-Direction |
Polarization | Vertical |
Maximum Input Power | 5W |
Impedance | 50Ώ |
Connector | SMA Male |
Antenna Radome Material | PE |
Mechanical
Dimensions | Φ8x50mm |
Weight | 6g |
Operating Temperature | -40℃ to+70℃ |
RoHS Compliant | YES |
Features of 2.4GHz Terminal 90 degree antenna
01
These portable / rubber antennas are designed for small indoor and outdoor portable applications.
02
It is ideal for applications such as Bluetooth, BLE, ZigBee and Wireless LAN.
03
The linear polarized antenna can be made very small and light weight.
If you are looking for a reliable rf antenna supplier, don't hesitate to contact us!
