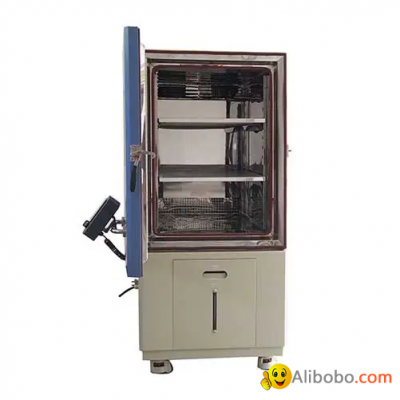

LIB humidity test chambers are available in standard and customized models, simulating a wide range of temperature and humidity. Humidity testing can be carried out for a long time, for which we have adopted an automatic water inlet design.The automatic water inlet system has realized water circulation and water resources saving, and also realized automated testing.
Humidity Chamber Features and Benefits
1. The humidity test chamber can realize long-term 85°C 85%RH test. The automatic water inlet and water circulation system of the test chamber perfectly realizes the automatic test, which has high test efficiency and saves time.
2. The controller of the humidity test chamber has a multilingual interface, which is convenient for customers to operate and use. Test data can be stored and downloaded.
3. The benchtop humidity chamber has a large size and defoggable view window, so that the specimen can be clearly observed during the test. It can also be equipped with a glass door, which is convenient for customers to adjust the specimen and observe.
4. The standard configuration humidity test chamber has a test hole, which can easily energize the specimen. If a special size test hole is required, LIB can customize it to meet customer's testing needs.
Specifications of Humidity Chamber
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
