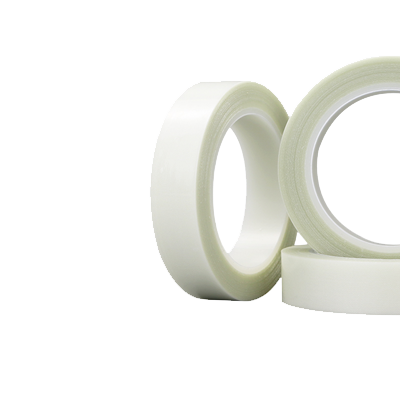

Glass Cloth Tape

Glass cloth high temperature resistant tape is made of high-quality high-density alkali-free glass cloth, coated with imported silicone pressure-sensitive adhesive on one side or both sides. The thickness of the single-sided glass cloth adhesive tape is 0.18 mm, and the thickness of the double-sided glass cloth adhesive tape is 0.2 mm. It is made with high-temperature treatment.

The glass cloth adhesive tape has the characteristics of good temperature resistance (-50 °C ~ 285 °C), strong adhesion, strong tear resistance, etc. It is applied to H-grade heat-resistant insulation banding, various high-temperature sandblasting protection, and lithium manganese battery insulation bandage, etc. The glass cloth electrical tape is equipped with high strength insulation protection.

Features Of Glass Cloth Adhesive Tape

Good stability can work at 200℃ for a long time, and can withstand 285℃ high temperature in a short time;

Soft and tear-resistant, strong adhesive force, not easy to deform, suitable for pasting and protecting the surface of various profiles;

There is no glue residue, no residue glue is left when tearing the tape after high temperature curing for a long time;

High mechanical strength, suitable for tight and tight coil wrapping; Product application: Insulation and strapping of transformers (especially high-frequency transformers, microwave oven transformers), fixation of local components in ovens, winding of ceramic heaters and quartz tubes Fixed.etc.

Glass Cloth Tape High Temperature-Datasheet

Features of Glass Cloth Tape

01

Good stability can work at 200℃ for a long time, and can withstand 285℃ high temperature in a short time.

02

Soft and tear-resistant, strong adhesive force, not easy to deform, suitable for pasting and protecting the surface of various profiles.

03

There is no glue residue, no residue glue is left when tearing the tape after high temperature curing for a long time.

04

High mechanical strength, suitable for tight and tight coil wrapping; Product application: Insulation and strapping of transformers (especially high-frequency transformers, microwave oven transformers), fixation of local components in ovens, winding of ceramic heaters and quartz tubes Fixed.etc.

Packing Information Of Glass Cloth Electrical Tape

Die Cutting tape: first PE bag then Bubble film to protect

Jumbo roll: plastic film + air bubble film + Corrugated cardboard

Cutting roll: each roll has liner to isolate then PE bag

Outer packing:

Cut roll: hard carton

Jumbo roll: Wooden box

Hopelight Electrical is a professional heat resistant tape manufacturer. We provide Polyimide Tape, Polyester Tape, Copper Tape, polyimide film tape and so on. Want to know what is glass cloth tape used for? Want to know about glass cloth tape price? Please contact us.
