Asbestos Cement Sheet

 Asbestos cement sheet is weatherproof, durable, corrosion-resist, heat insulating. All these properties contribute it an ideal construction material.

Three types of asbestos cement products at stock - flat sheet, corrugated sheet and coated corrugated sheet.

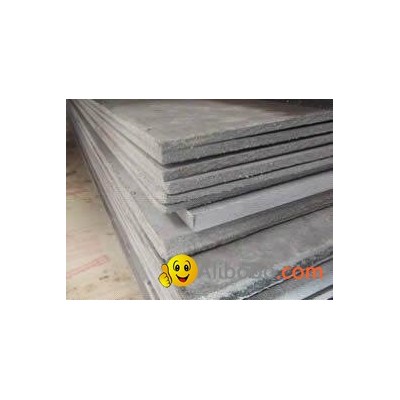

Flat sheet

Flat sheet is mainly applied for equipment and constructions. In steel making factory, it can be used in vacuum furnace, smelting furnace, heating equipment for its exceptional thermal insulation. In constructions, it can be used in commercial buildings, shopping malls, hotels, factories, warehouses, tunnels, theaters, stations and hospitals. Asbestos cement sheet has a collection of fire insulation, waterproof, noise insulation,



Physical and technical specifications

Length	1750 ±10mm
Width	1110 ±6mm
Thickness	8-10 ±1.0mm
flexural strength	≥ 18.0 MPa
Density	≥ 1.6 g / cm3
Impact strength	≥ 2.0 kJ / m2
Frost resistance	25 cycles
Residual strength	≥90%

Corrugated sheet

Corrugated sheets, or roofing sheets, are widely used in attic roofs, furnace curtain, residence, public and agricultural buildings.





Physical and technical characteristics

Length	1750 ±15mm
Width	1130 ±5mm
Thickness	5.8 ±0.3mm
Ordinary wave height	40 ±4.0mm
Overlapping wave height	40 ±6.0mm
Overlapped wave height, mm	32 ±6.0mm
The width of the overlapping wave	43 ±7.0mm
Width overlapped wave	37mm
Step wave	150mm
The flexural strength	not less than 16.0
Density (bulk density)	≥ 1.6 MPa
Impact strength	≥ 1.50kJ / m2
Frost resistance	25 cycles
Water resistance	≥ 24 hours
Residual strength	≥ 90%

Coated sheet
Coated sheet is coated with colorful polymer which adds fashion elements to buildings, such as attic roofs, schools, theaters and so on.

Coated asbestos sheet decorate your properties	Coated asbestos cement corrugated sheet, 1750×1110mm, 5.8mm

Physical and technical properties

Length	1750 ±15mm
Width	1130 ±5mm
Thickness	5.8 ±0.3mm
Ordinary wave height	40 ±4.0mm
Overlapping wave height	40 ±6.0mm
Overlapped wave height, mm	32 ±6.0mm
The width of the overlapping wave	43 ±7.0mm
Width overlapped wave	37mm
Step wave	150mm
The flexural strength	not less than 16.0 MPa
Density (bulk density)	≥1.6 g / cm3
Impact strength	≥ 1.50kJ / m2
Frost resistance	25 cycles
Residual strength,%	≥ 90%
Adhesion of the polymer coating to the sheeting, MPa	≥ 1.0 MPa
Appearance	no cracks, bubbles, bundles
Color fastness	Δ E (A, B, L)
Heat resistance of the polymer coating sheets	100% for 2 hours
Mark on frost resistance F 50, F 75, F 100	No change the look of the polymer coating
