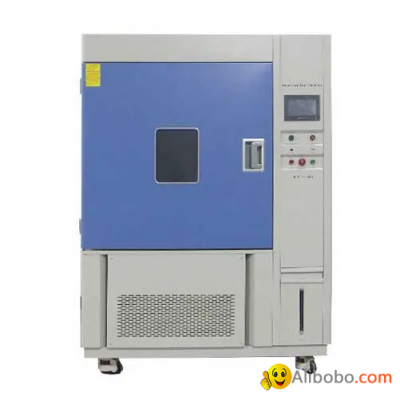

LIB xenon lamp aging test chamber can be used for aging tests such as color fastness and cracking of coatings, and can meet international standards such as ISO and ASTM.The xenon arc test chamber contains a variety of models to choose from small and large. There are a variety of xenon arc test chambers with different structures, including rotating type and flat type for testing different test pieces.
Xenon Arc Chamber Features and Benefits
1. According to different specimens, xenon arc chamber has a variety of models to choose from; For flat specimens, rotating drum type xenon arc chamber is the best; for irregular samples, shelf type xenon arc chamber is suitable. The chamber has a variety of structures and sizes to freely choose from.
2. The xenon arc chamber is equipped with a water-cooled xenon arc lamp, which has high stability and good cooling performance
3. The xenon arc chamber has a variety of filters to choose from: Daylight Q, Daylight B/B, Window Q, Window B/B filters.
4. The xenon arc chamber can be used for color fastness testing, cracking, weathering, aging testing, and meets various light aging testing standards, such as ASTM, ISO, etc.
Xenon Arc Chamber Specifications
Model | XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
Humidification System | External isolation, stainless steel surface evaporation humidifier |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel plate with protective coating |
Interior Material | SUS304 stainless steel |
Thermal Insulation | Polyurethane foam and insulation cotton |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing |
