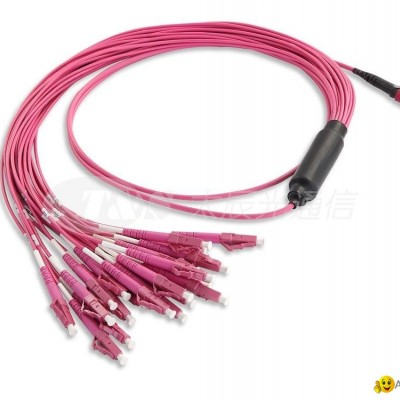

MTP/MPO harness cables are a kind of breakout/fanout MPO cable assembly with one MTP/MPO connector on one end and multiple single-fiber connectors (LC, SC, FC, etc.) on the other end, designed for data distribution and routing to patch panels. It is used to transition from trunk backbone assemblies to fiber rack system. The harness cables are fully configurable, available with a variety of cable and connector combinations. For the hardware and equipment in the same cabinet, the longer patch cords can provide flexibility at any location, and the branch cables can be winded into the vertical cable organizer.
Features of MTP Harness Cable Low loss performance
MPO / MTP in 8/12/16/24/32 fibers interfaces for choices.
Available in OS1, OS2, G.657A2, OM3, OM4 Fiber Grades – OM1 and OM2 available upon request
Option for LSZH, OFNP or OFNR cable jacket
100% factory terminated and tested
Pulling eyes are provided as an option to protect the fiber ends during installation
Save installation and reconfiguration time
Applications of MTP/MPO Harness Cable
Data Center Interconnect
High-Density Fiber Management
Telecommunication Networks and CATV networks
LAN/WAN Premises
Standards compliance of MTP/MPO Harness Cable
TIA/EIA-568.3-D and ISO/IEC 11801
IEC-61754 & EIA/TIA-604-5
NFPA 262 or IEC 60332
EN 50575
Comply with GR-1435-CORE, GR-2866-CORE, GR-326-CORE
Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC
Typical Cable Structure of MTP/MPO Harness Cable
Fiber Count | OD(mm) | Nominal Weight(kg/km) | Max. Tension(N) | Max. Crushing Resistance (N/100) | ||
Short term | long Term | Short term | long Term | |||
12 | 3.0±0.1 | 8.1 | 150 | 80 | 500 | 150 |
24 | 3.0±0.1 | 8.5 | 160 | 80 | 500 | 150 |
24 | 9.0±0.5 | 72 | 500 | 180 | 1000 | 300 |
36 | 9.0±0.5 | 78 | 500 | 180 | 1000 | 300 |
48 | 9.0±0.5 | 79 | 600 | 200 | 1000 | 300 |
60~72 | 11.2±0.5 | 126 | 1000 | 300 | 1000 | 300 |
96 | 13.5±0.5 | 178 | 1000 | 300 | 1000 | 300 |
144 | 17.5±0.5 | 285 | 1000 | 300 | 1000 | 300 |
Note: The actual weight of optical cable may have some tolerance against values stated above.
T&S Communications is one of professional fiber optic accessories suppliers. We provide WDMs, Fiber Optic Component, optical communications products and so on. Want to know more? Please contact us.
