● SMPTE 297-2006 Compatible Features
● Speed from 50 Mbps to 3Gbps
● Single-mode Fiber
● Distance up to 3km for 3G-SDI
● Support Video Pathological Patterns for SD-SDI,HD-SDI and 3G-SDI
● Single 1310nm FP laser
● Hot-pl able SFP
● Digital Diagnostic functions available through the I2C interface
● Single +3.3V power supply
● Low Power Consumption
● RoHS compliant
● Operating case temperature: 0 to +70°C
Applications
● SMPTE 424M/297M (2.97Gb/s)
● SMPTE 292M/297M (1.485Gb/s)
● SMPTE 259M/297M (270/360Mb/s)
● OC-48 and 2x Fiber Channel
Description

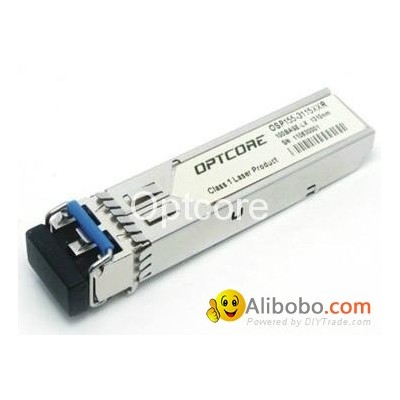

Optcore 3Gb/s video SMPTE SFP transmitter are high performance, cost effective modules for single channel video transmission application over single mode fiber. The 3Gb/s video SFP transmitter is designed for data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The 3Gb/s video SFP transmitter transmits optical signals over single mode fiber (SMF). The maximum transmission distance of 3km is achievable with 3Gbps pathological signals.
The Company | Optcore Technology (HK) Limited |
The contact | Bella |
The Address | 315-321 LOCKHART ROAD,WANCHAI |
The Website | https://www.alibobo.com/com/optcor137/ |
3G video SMPTE SFP Transmitter (Single Tx)
