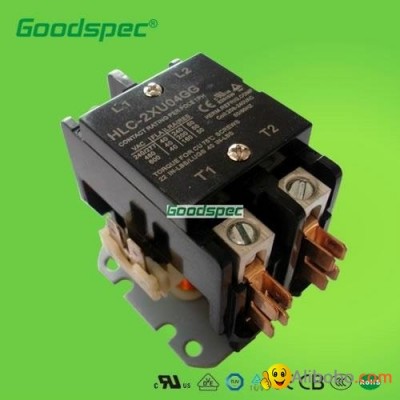

HLC-2XQ04GG(2P/40A/24VAC) Definite Purpose Contactors_Air-conditioner_Consumer Electronics & Lighting_supply

Related Products from this Supplier

Application & Ordering information

1 、Application

HLC-2XQ04GG definite purpose contactors (2-pole ,40A ) are ideal for（HVAC） air conditioning, refrigeration, heating, data processing, welding, elevators, hoists & cranes, lighting, pools & spas and food service equipment.

2 、Ordering information

HL	C	-	2X	Q	04	GG
Hongli Electric	Contactor	Factory Bulk Pack	2P	24VAC	40 FLA	#14-4 Lug with dual QC

Product Feature

Detailed Product Description	Unique amortization system to eliminate contact bounce
	Low cost
	Accessories modification quickly and easily without using tools
	Various kinds of terminals for customers' special requirements
	Easy to change the coil
	General amounting size, easy for replacement
	Can be combined with a thermal overload relay to form an electromagnet starter to protect the line in which overload operation may occur
	Double E magnet assembly providing optimal performance with reduced power consumption
	Effective dustproof cover available
	Silver Cadmium Oxide contacts provide long electrical endurance.
	Class F high temperature insulated coils are standard.

Technology Data

NUMBER OF POLES	COIL VOLTAGE 50/60HZ	FULL LOAD AMPS	LINE VOLTAGE	LOCKED ROTOR AMPS	RESISTIVE SMPS RATING	MAXIMUM HORSEPOWER		BOX QUANTITY	APPROX UNIT WEIGHT
NUMBER OF POLES	COIL VOLTAGE 50/60HZ	FULL LOAD AMPS	LINE VOLTAGE	LOCKED ROTOR AMPS	RESISTIVE SMPS RATING	VOLTAGE	SINGLE PHASE	BOX QUANTITY	APPROX UNIT WEIGHT
20FLA-2POLE
2	24 120 208/240 277	20	240/277 480 600	120 100 80	30 30 30	120 240	2 3	50	.27 kg
25FLA-11/2&2POLE
1 with shunt	24 120 208/240 277	25	240/277 480 600	150 50 40	30 30 30	120 240	1 2	50	.23 kg
2	24 120 208/240 277	25	240/277 480 600	150 125 100	35 35 35	120 240	2 3	50	.27 kg
30FLA-11/2&2POLE
1 with shunt	24 120 208/240 277	30	240/277 480 600	150 75 50	40 40 40	120 240	1 2	50	.23 kg
2	24 120 208/240 277	30	240/277 480 600	150 125 100	40 40 40	120 240	2 3	50	.27 kg
40FLA-11/2&2POLE
1 with shunt	24 120 208/240 277	40	240/277 480 600	240 200 160	50 50 50	120 240	2 3	50	.23 kg
2	24 120 208/240 277	40	240/277 480 600	240 200 160	50 50 50	120 240	2 3	50	.27 kg

OTHER SPECIFCATIONS	20-35 FLA	40 FLA
Line and Load Terminals	#10-32Screw*	BoxLugs*
Wire Size Awg Min-Max	16-8*	14-4Cu/Al
Tightening Torque(recommended)	25in.Ibs	40 in.Ibs
Coil Termination	Dual.250 QC(2)	Dual.250 QC(2)
Quick Connects.250 std.-1 or 11-2 Pole	Quad	Quad
Quick Connects.250 std.-2 Pole	Dual or Quad	Dual or Quad
Covers	Optional	Standard
Insulation System	130℃ Class B	130℃ Class B
stranding must be split for #8 wirePermissible Ambient Temperature: -40℃/65℃ -40F/150F

COIL TECHNICAL DATA 50/60hz	1POLE CONTACTORS				2POLE CONTACTORS
Nominal Coil Voltage	24	120	208/240	277	24	120	208/240	277
Maximum Pickup Volts	18	88	177	221	18	88	177	221
Drop-Out Volts Range	6-15	20-70	40-140	50-165	6-15	20-70	40-140	50-160
Nominal Inrush VA@50Hz	31	31	35	31	22	22	22	22
Nominal Inrush VA@60Hz	28	28	32	28	20	20	20	20
Nominal Sealed VA@50Hz	6	6	7	6	5.5	5.5	5.5	5.5
Nominal Sealed VA@60Hz	5	5	6	5	4.5	4.5	4.5	4.5
Nominal DC Resistance-Ohms	17.5	450	1800	2252	13	275	1056	1772

Deimensions

Specification

	HLC-1P,1N,1X,2X,3X,4X series Difinite Purpose Contactor
