Application & Ordering information

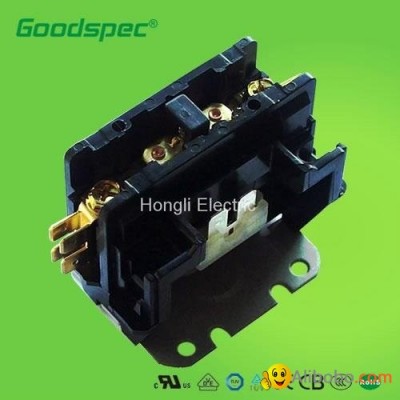

HLC-1P Series definite purpose contactors (1-pole ,20A ) are ideal for（HVAC） air conditioning, refrigeration, heating, data processing, welding, elevators, hoists & cranes, lighting, pools & spas and food service equipment.

Product Feature

Product Description	Unique amortization system to eliminate contact bounce
	Low cost
	Accessories modification quickly and easily without using tools
	Various kinds of terminals for customers' special requirements
	Easy to change the coil
	General amounting size, easy for replacement
	Can be combined with a thermal overload relay to form an electromagnet starter to protect the line in which overload operation may occur
	Double E magnet assembly providing optimal performance with reduced power consumption
	Effective dustproof cover available
	Silver Cadmium Oxide contacts provide long electrical endurance.
	Class F high temperature insulated coils are standard.

COIL TECHNICAL DATA 50/60hz	1POLE CONTACTORS				2POLE CONTACTORS
Nominal Coil Voltage	24	120	208/240	277	24	120	208/240	277
Maximum Pickup Volts	18	88	177	221	18	88	177	221
Drop-Out Volts Range	6-15	20-70	40-140	50-165	6-15	20-70	40-140	50-160
Nominal Inrush VA@50Hz	31	31	35	31	22	22	22	22
Nominal Inrush VA@60Hz	28	28	32	28	20	20	20	20
Nominal Sealed VA@50Hz	6	6	7	6	5.5	5.5	5.5	5.5
Nominal Sealed VA@60Hz	5	5	6	5	4.5	4.5	4.5	4.5
Nominal DC Resistance-Ohms	17.5	450	1800	2252	13	275	1056	1772

Specification

HLC-1P,1N,1X,2X,3X,4X series Difinite Purpose Contactor
