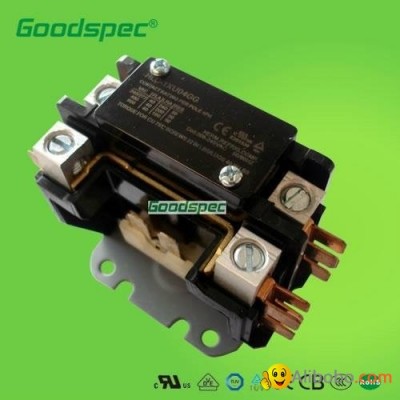

HLC-1XT04GG(1.5P/40A/120VAC) Definite Purpose Contactors_Air-conditioner_Consumer Electronics & Lighting_supply

Related Products from this Supplier

Application & Ordering information

1 、Application

HLC-1XT04GG definite purpose contactors (1-pole ,40A ) are ideal for（HVAC） air conditioning, refrigeration, heating, data processing, welding, elevators, hoists & cranes, lighting, pools & spas and food service equipment.

2 、Ordering information

HL	C	-	1X	T	04	GG
Hongli Electric	Contactor	Factory Bulk Pack	1.5P	120VAC	40 FLA	#14-4 Lug with quad QC

Product Feature

Detailed Product Description	• Unique amortization system to eliminate contact bounce
	• Low cost
	• Accessories modification quickly and easily without using tools
	• Various kinds of terminals for customers' special requirements
	• Easy to change the coil
	• General amounting size, easy for replacement
	• Can be combined with a thermal overload relay to form an electromagnet starter to protect the line in which overload operation may occur
	• Double E magnet assembly providing optimal performance with reduced power consumption
	• Effective dustproof cover available
	• Silver Cadmium Oxide contacts provide long electrical endurance.
	• Class F high temperature insulated coils are standard.

Technology Data

NUMBER OF POLES	COIL VOLTAGE 50/60HZ	FULL LOAD AMPS	LINE VOLTAGE	LOCKED ROTOR AMPS	RESISTIVE SMPS RATING	MAXIMUM HORSEPOWER		BOX QUANTITY	APPROX UNIT WEIGHT
NUMBER OF POLES	COIL VOLTAGE 50/60HZ	FULL LOAD AMPS	LINE VOLTAGE	LOCKED ROTOR AMPS	RESISTIVE SMPS RATING	VOLTAGE	SINGLE PHASE	BOX QUANTITY	APPROX UNIT WEIGHT
20FLA-2POLE
2	24 120 208/240 277	20	240/277 480 600	120 100 80	30 30 30	120 240	2 3	50	.27 kg
25FLA-11/2&2POLE
1 with shunt	24 120 208/240 277	25	240/277 480 600	150 50 40	30 30 30	120 240	1 2	50	.23 kg
2	24 120 208/240 277	25	240/277 480 600	150 125 100	35 35 35	120 240	2 3	50	.27 kg
30FLA-11/2&2POLE
1 with shunt	24 120 208/240 277	30	240/277 480 600	150 75 50	40 40 40	120 240	1 2	50	.23 kg
2	24 120 208/240 277	30	240/277 480 600	150 125 100	40 40 40	120 240	2 3	50	.27 kg
40FLA-11/2&2POLE
1 with shunt	24 120 208/240 277	40	240/277 480 600	240 200 160	50 50 50	120 240	2 3	50	.23 kg
2	24 120 208/240 277	40	240/277 480 600	240 200 160	50 50 50	120 240	2 3	50	.27 kg

OTHER SPECIFCATIONS	20-35 FLA	40 FLA
Line and Load Terminals	#10-32Screw*	BoxLugs*
Wire Size Awg Min-Max	16-8*	14-4Cu/Al
Tightening Torque(recommended)	25in.Ibs	40 in.Ibs
Coil Termination	Dual.250 QC(2)	Dual.250 QC(2)
Quick Connects.250 std.-1 or 11-2 Pole	Quad	Quad
Quick Connects.250 std.-2 Pole	Dual or Quad	Dual or Quad
Covers	Optional	Standard
Insulation System	130℃ Class B	130℃ Class B
stranding must be split for #8 wirePermissible Ambient Temperature: -40℃/65℃ -40F/150F

COIL TECHNICAL DATA 50/60hz	1POLE CONTACTORS				2POLE CONTACTORS
Nominal Coil Voltage	24	120	208/240	277	24	120	208/240	277
Maximum Pickup Volts	18	88	177	221	18	88	177	221
Drop-Out Volts Range	6-15	20-70	40-140	50-165	6-15	20-70	40-140	50-160
Nominal Inrush VA@50Hz	31	31	35	31	22	22	22	22
Nominal Inrush VA@60Hz	28	28	32	28	20	20	20	20
Nominal Sealed VA@50Hz	6	6	7	6	5.5	5.5	5.5	5.5
Nominal Sealed VA@60Hz	5	5	6	5	4.5	4.5	4.5	4.5
Nominal DC Resistance-Ohms	17.5	450	1800	2252	13	275	1056	1772

Specification

	HLC-1P,1N,1X,2X,3X,4X series Difinite Purpose Contactor
