1.Applicable scope & Type description

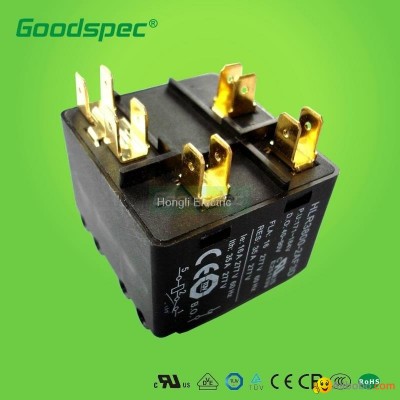

1 、Applicable scope HLR3800-8P3D single-phase motor (compressor) the starting relay mainly uses in exchanging 50/60HZ, the voltage to the 277V control circuit and the nominal current to the 16A power circuit, through starts the electric capacity, the starting single-phase motor (compressor). Is suitable in the air conditioning, the refrigerator and so on industry machine electric appliance equipment and so on domestic electric appliances and water pump. | | 2 、Type and meaning |
| HLR | 3800 | - | 8 | | P | 3 | D | | relay | serial | bulk pack | Coil No. | 50Hz | Operating characteristics | Operating Position | Terminal configuration |
|
2.Product explanation and major technique parameter |
| ★ Fixed isolation voltage Ui ： 600V | | ★ Fixed working voltage Ue ： AC 277V | | ★ Fixed operating current： Ie=16A , Ith=35A | | ★ Normal connection and breaking current： 35A 、Breaking current ability： 96A | | ★ Mechanical life＞ 1,000,000 times | | ★ Electricity life＞ 100,000 times | | ★ Coil working voltage scope: 70% ～110%Us | ★ Product coil working voltage Us=AC 170 ～ 502V | | ★ The relay winding (cold clean criticality) can attract reliably in AC 170 ~ 502V gathers, the released voltage is not lower than AC 40V. |
|
| 3.Conforms To The Standard |
| 1 、Conforms To IEC 60730；GB14048.5,UL508 Standard 。 | | 2 、Approved By ISO9001 System Certification(SGS)、 CCC，TUV，CE，UL and Safe Certification | CCC File Number: 2005010303156716 | TUV File Number: B 05 06 56608 001 | UL File Number: E251539 | CE File Number : N8N 05 06 56608 002 |
|
4.Characteristics |
| Part No. | Continuous Coil
Voltage (V) | Pick-up (V) | Drop-out (V)
Max. | | Min. | Max. | | HLR3800-7AD3D | 168 | 140 | 153 | 45 | | HLR3800-5AN3D | 395 | 262 | 290 | 140 | | HLR3800-2AF3D | 332 | 171 | 184 | 90 | | HLR3800-5AI3D | 395 | 204 | 233 | 130 | | HLR3800-4AP3D | 420 | 300 | 328 | 121 | | HLR3800-6AQ3D | 502 | 314 | 342 | 135 | | HLR3800-3AG3D | 375 | 180 | 195 | 105 |
|
| | HonGLI ELECTRIC 3800 Series PRODUCT CATALOG
DownLoad PDF DataSheet |
