1、Applicable and Description

1. Applicable Scope

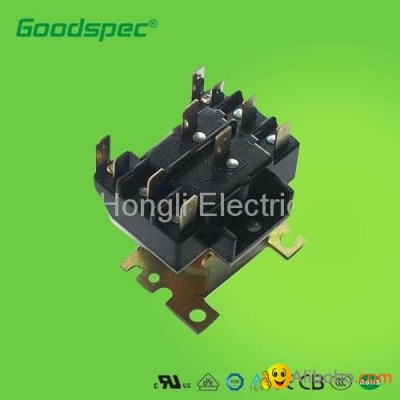

HLR-92AU1AA（DPNO/12A/208-240VAC）Switching Relay，for the exchange of 50/60HZ, voltage to 277V, DC voltage control circuit to 220V and rated current of 12A to the power lines, circuit switching control air-conditioning and heating fans for air conditioners, household appliances, electrical equipment, industrial machinery . The product has a small size, light weight, low power consumption coil, contact load, strong shock resistance and high reliability, and other characteristics.

2.Type and Meaning

HL	R	-	9	2A	U	1	AA
	relay	-:Factory Bulk Pack		DPNO	208-240VAC	Power Rated	Bracket mounting with.250"QC

2、 Product Explanation And Main Technical Parameter

★　Rating of insulation voltage Ui ： 600V

★　Rating of contacts voltage Ue ： AC 277V

★ Rating of current： Ie=6A （ AC-8b ), Ith=15A

★　Mechanical life＞1,000,000 Cycles

★　Electricity life＞100,000 Cycles

★　Coil working voltage scope: 70% ～110%Us

★　Product coil working voltage Us=12,24,36,48,110/120,220/240VAC

3、Conforms To The Standard

	1 、Conforms To UL508, IEC60947, GB14048 Standard。
	2 、Approved By UL,ROHS and ISO9001 System Certification(SGS)。
	UL Files Number: E251539

4、Ordering Request

To ensure your requirements, please specify your order：

If you request as follows: Nominal current: 12A, working voltage: 240/277V, pole form: DPNO, coil control voltage: 208/240VAC, wiring way: A group 1/4 " fast attachment, load: The single-phase perception or the linear load, install the way: The foundation kneading board installment (AA), packing: 120/each box (factory packing). Then you may the shaping be：HLR-92AU1AA

Lifts The Samples As Follows (Contains Derivation Type From This Model)

Ie	Pole	Rating of Coil Control Voltage				Motor Power
Ie	Pole	24VAC	120VAC	208/240VAC	277VAC	240VAC
12A	DPNO	HLR-92AQ1AA	HLR-92AT1AA	HLR-92AU1AA	HLR-92AV1AA	2.5Kw

5、Instruction booklet downioading

	HonGLI ELECTRIC 9100 Series PRODUCT CATALOG
	DownLoad PDF DataSheet
