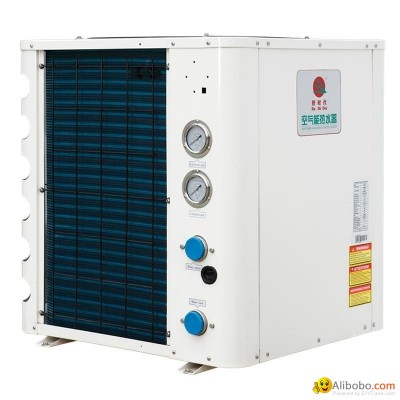

SPA Heat Pump
The application of R410A refrigerant which will not do harm to the ozone layer and thus is more environmentally-friendly. Titanium double coil exchanger which is corrosion resisting makes the unit with a longer service life. This series also integrates with many intelligent functions.
Features
Tube in shell titanium heat exchanger
Rotary compressor
Intelligent defrosting
Compact configuration
Horizontal fan discharge
Easy installation
Low noise & vibration
Model | HLRC5-YC | |
Heating Capacity | KW | 4.5 |
COP | 5.0 | |
Cooling Capacity | Kw | 4.0 |
EER | 4.0 | |
Max Water Outlet Temperature | ℃ | 45 |
Rated Input Power (Heating/Cooling) | Kw | 0.9/1.0 |
Rated Input Current (Heating/ Cooling) | A | 4.26/4.7 |
Max Input Power | Kw | 1.4 |
Max Input Current | A | 6.7 |
Power Supply | Voltage/Hz/Ph | 220-240V/50Hz/1Ph |
Compressor Type | Rotary | |
Number of Compressors | 1 | |
Heat Exchanger | Titanium tube in PVC shell | |
Throttling device | Capillary | |
Fan type | Low noise high efficiency axial type | |
Fan Direction | Horizontal | |
Number of Fans | 1 | |
Fan Air Flow Volume | m3/h | 1800 |
Fan Power Input | w | 60 |
W | RPM | 850 |
Ambient Temperature | ℃ | -10℃～43℃ |
Refrigerant/Charge Qty | Kg | R22 |
Noise in 1 meter distance | dB(A) | ≤45 |
Piping Diameter | mm | Rc1-1/2" |
Cabinet | Steel with powder coated | |
Discharge Pressure | Mpa | 2.5 |
Suction Pressure | Mpa | 0.8 |
Rated Water Pressure | Mpa | 0.2~0.6 |
Max Water-in Pressure | Mpa | 1 |
Min Water-in Pressure | Mpa | / |
Water Flow Volume | m3/h | 1.6 |
Product Dimensions | mm | 930/350/550 |
Shipping Dimensions | mm | 1100/450/650 |
Net Weight | kg | 48 |
Shipping Weight | kg | 58 |
Certificates | Europe standard working condition | |
Testing condition: | Europe standard working condition | |
1. Heating working condition: Outdoor DB/WB temp = 24℃/19℃, 62.5%RH, inlet/outlet water temp = 26℃/28℃. | ||
2. Cooling working condition: Outdoor DB/WB temp = 35℃/24℃, 68%RH, inlet/outlet water temp = 30℃/28℃. | ||
