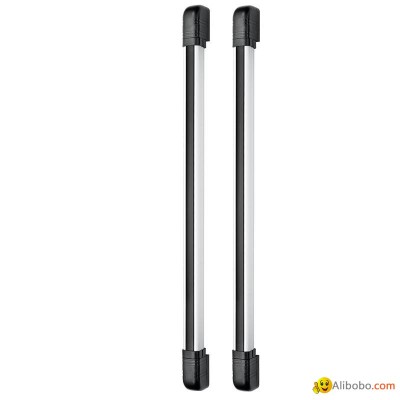

Perimeter ABI Series Strip Infrared Beam Barrier
1.Aluminum housing with special electrophoresis processing, anti-oxidation surface is more wearable and durable.
2.Integrated and fully sealed structure and external circuit design, improves waterproof ability and installation efficiency.
3.Anti-tamper switch opens and triggers alarm if power cut off or end-cap removed.
4.Two different frequency channels, avoiding interference caused by adjacent rays.
5.Intelligent fuzzy analysis technology adopted to improve response speed and stablity.
6.Buzzer indication for well alignment.
7.Alarm method: any two adjacent beams breaks, helpful for preventing false alarms triggered by small animals and birds.
8.Adjustable response sensitivity.
9.Designed and recommended for protection of doors and windows.
10.High immunity to sunlight, rain, frost, fog, snow etc.
| Model | ABI10-482 | ABI30-482 | ABI60-482 | ABI100-482 | ABI10-764 | ABI30-764 | ABI60-764 | ABI100-764 | |
| Outdoor Range | 10m | 30m | 60m | 100m | 10m | 30m | 60m | 100m | |
| Height | 48cm | 76cm | |||||||
| Beams | 2 | 4 | |||||||
| Model | ABI10-1086 | ABI30-1086 | ABI60-1086 | ABI100-1086 | ABI10-1408 | ABI30-1408 | ABI60-1408 | ABI100-1408 | |
| Outdoor Range | 10m | 30m | 60m | 100m | 10m | 30m | 60m | 100m | |
| Height | 108cm | 140cm | |||||||
| Beams | 6 | 8 | |||||||
| Model | ABI10-17210 | ABI30-17210 | ABI60-17210 | ABI100-17210 | ABI10-20412 | ABI30-20412 | ABI60-20412 | ABI100-20412 | |
| Outdoor Range | 10m | 30m | 60m | 100m | 10m | 30m | 60m | 100m | |
| Height | 172cm | 204cm | |||||||
| Beams | 10 | 12 | |||||||
| Detection method | Simultaneous interruption of adjacent 2 infrared beams | ||||||||
| Beam frequency | 2 channel ( A and B ) | ||||||||
| Power Supply | DC11~18V | ||||||||
| Current Consumption | 50~90mA max | ||||||||
| Response speed | 40msec | ||||||||
| Alarm Output | Switch ouput signal, NO, NC optional | ||||||||
| Tamper Switch | NC, opens when cover removed | ||||||||
| Operating Temperature | -25℃ to +55℃ | ||||||||
| Environment Humidity | 95% max | ||||||||
| Alignment Angle | Horizontal 180°(±90°), Vertical unadjustable | ||||||||
| Protection Degree | IP65 | ||||||||
| Material | PC engineering plastic, Aluminum housing | ||||||||
