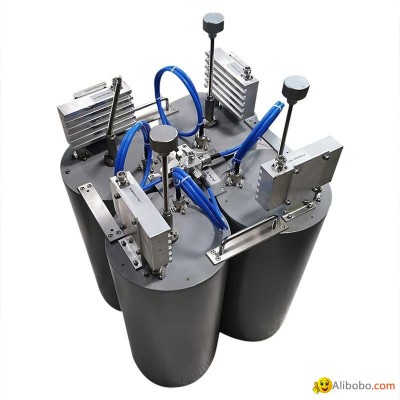

UHF Cavity Transmitter Combiner(COM-(X)-50-NN-01)
No | Item | Technic |
1 | Frequency range | 350-470MHz |
2 | Frequency Separation | ≥250 KHz |
3 | Tuning Range | 5.0MHz |
4 | VSWR | In≤1.25 Out≤1.50 |
5 | Isolation ANT-TX | ≥60dB |
6 | Isolation TX-TX | ≥65dB |
7 | Power | 50W(CW) |
8 | Temperature | +15℃~+35℃
|
9 | Connector | N-K,50Ω |
10 | Color | Gray |
Channel | Insertion Loss | Dimension( Size) | ||||
330-400MHz | 400-470MHz | 470-520MHz | Length(mm) | wideth(mm) | High(mm) | |
2 | ≤3.2dB | ≤3.4dB | ≤3.6dB | 340 | 175 | 480 |
3 | ≤3.4dB | ≤3.6dB | ≤3.8dB | 340 | 340 | 480 |
4 | ≤3.6dB | ≤3.8dB | ≤4.0dB | 340 | 340 | 480 |
6 | ≤4.2dB | ≤4.4dB | ≤4.6dB | 340 | 510 | 480 |
8 | ≤4.6dB | ≤4.8dB | ≤5.0dB | 340 | 680 | 480 |
The Company | Shenzhen Xinlun Communciation Technology Co.,Ltd |
The contact | han |
The Address | NO.33 F3 Fenghuang Village Fuyong Fuyong street,Baoan Distict, Shenzhen |
The Website | https://www.alibobo.com/com/shenzh32/ |
