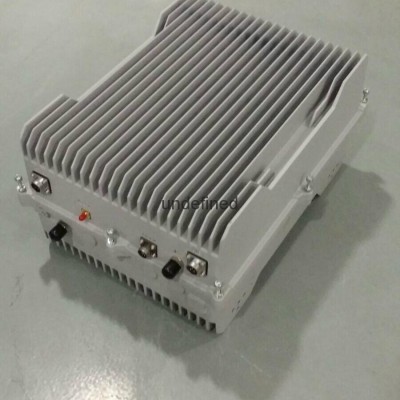

Tetra 5W Band Selective Repeater

NO.

Items

Parameters

Remarks

Downlink

Uplink

1

Frequency Range

390MHz-395MHz

380MHz-385MHz

390MHz-430MHz，Can be customized according to customer requirements

2

Output Power（Max）

37Bm

30dBm

3

Max Gain

85dB

85dB

4

Gain Modulation Range

30dB

5

Gain Modulation Step

1dB

6

Gain Modulation Error

While gain is 0-20dB，While gain is 21-30dB

7

Noise Factor

5dB

5dB

Test with full gain

8

Max NO Damage Input Power

-10dBm

-10dBm

9

Automatic Level Control（ALC）

Output power variation < 2dB or be off when adding 10dB at max output power.

10

Pass Band Ripple

≤3dB

11

VSWR

≤1.5

12

Time Delay

≤5.0

13

Spurious Emissions

In-Band

≤-36dBm/3kHz or ≤-60dBc/30kHz

Out-Band(Deviation from the band edge outside 2.5MHz)

9kHz-1GHz≤-36dBm

1GHz-12.75GHz≤-30dBm

14

IMD

In-Band

≤-55dBc/30kHz

Out-Band(Deviation from the band edge outside 2.5MHz)

9kHz-1GHz≤-36dBm

1GHz-12.75GHz≤-30dBm

15

Gain Out of band

≤50dB when 400kHz

≤40dB when 600kHz

≤35dB when 1MHz

≤25dB when 5MHz

Complies with ETSI

16

Frequency Stability

≤0.05ppm

17

Local Monitoring  Control

RS232

Dry contact alarm

18

RF Connection Mode

N/F,50Ω

19

Power Supply Mode

AC 100V-260V,45-55Hz

20

Power Consumption

≤220W

21

Operation Temperature

-25 to 55

22

Casing class

IP55

23

Machine Weight

20kg

24

Dimension

357×217×453 （W*H*L）

25

MTBF

≥50000h
