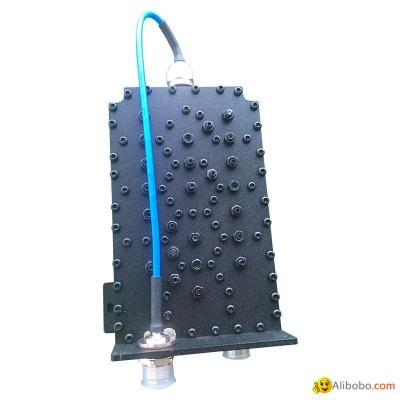

1.2G duplexer specification
(date)：2018.10.23 (NO.)：XL-SGQ-350
（Product ID） |
| （Model） | Duplexer | |
（Product Description） | d | |||
Product specification | ||||
Channel |
| |||
working frequency（MHz） | 1290-1293 | 1270-1273 | ||
Insertion loss（dB） | ≤1.5 | ≤1.5 | ||
Fluctuations in the band（dB）
| ≤1.0 | ≤1.0 | ||
Band rejection（dB） | 1270-1273MHz≥85dB | 1290-1293MHz≥85dB | ||
VSWR | ≤1.3 | |||
Input impedance（Ω） | 50 | |||
Input power（W） | ≥100 | |||
working temperature(℃) | -20～+65 | |||
Port Type | SMA | |||
Dimensions（mm） | 133*109*40
| |||
| The Company | Shenzhen Xinlun Communciation Technology Co.,Ltd |
| The contact | han |
| The Address | NO.33 F3 Fenghuang Village Fuyong Fuyong street,Baoan Distict, Shenzhen |
| The Website | https://www.alibobo.com/com/shenzh32/ |
