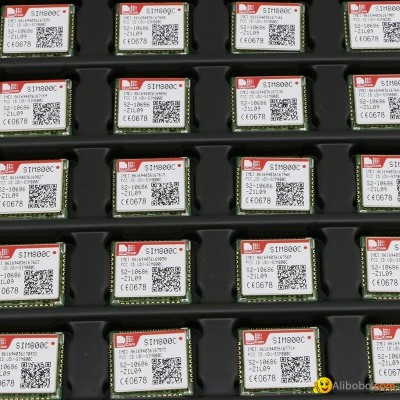

SIMCOM SIM800C GSM GPRS Module SIM800C, 2G Communication Module LCC Form Factor

SIM800C supports Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 17.6*15.7*2.3mm, it can smoothly fit into slim and compact demands of customer design.

General features
•Quad-band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)
•Dimensions: 17.6*15.7*2.3mm
•Weight: 1.3g
•Control via AT commands (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃

Specifications for GPRS Data
•GPRS class 12: max. 85.6 kbps (downlink/uplink)
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•USSD

Specifications for SMS via GSM/GPRS
•Point to point MO and MT
•SMS cell broadcast
•Text and PDU mode

Software features
•0710 MUX protocol
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•POP3/SMTP
•DTMF
•Jamming Detection
•Audio Record
•SSL
•Bluetooth 3.0(optional)

Specifications for voice
•Tricodec
–Half rate (HR)
–Full rate (FR)
–Enhanced Full rate (EFR)
•Hands-free operation （Echo suppression）

Interfaces
42 SMT pins including
•Analog audio interface
•RTC backup
•USB interface
•Serial interface
•Interface to external SIM 3V/1.8V
•GPIO
•ADC
•GSM Antenna pad
•Bluetooth Antenna pad

Compatibility
•AT cellular command interface

Certifications:
•CE
•FCC
•TA
•ROHS
•REACH
•GCF
•ACMA
•CCC
•CTA

*Enhance version support EAT and TTS_CN function
