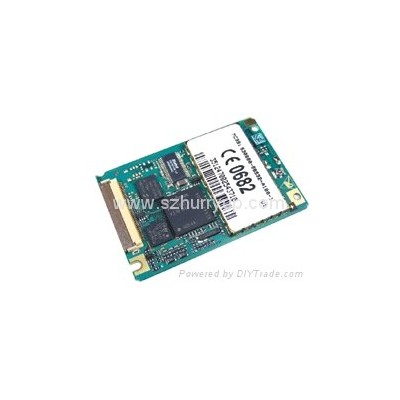

MC39I GSM/GPRS Wireless Module

Product Name: MC39I

Features:
Dual-Band GSM/GPRS 900/1800 MHz
Extended AT commands for M2M applications
Low power consumption (stand-by mode: 25 mA, talk mode: 300 mA)
Dimension: 54.5 x 36 x 3.6 mm

Detail introduce:
Voltage: 3.3V ~ 4.8V
Band: Dual GSM900MHz and DCS1800 MHz(Phase 2+)
Output power: 2W (GSM900MHz Class 4)
1W (DCS1800MHz Class 1)
SIM card connector type: External
Antenna: RF Cable connect with external Antenna
Temp range: Normal Temp: -20° C to +70° C
Store Temp: -40° C to +85° C
Power consumption:
Speech mode(average): 300mA
Sleep Mode: 3.0mA (Max)
Power down: 50µ A (Max)
GPRS class 10(average) 590mA

Specification for voice:
Triple-rate code for HR, FR and EFR
Basic hands-free operation
Echo cancellation
Noise reduction

Specification for SMS:
Point-to-point MO and MT
SMS cell broadcast
Text and PDU mode
Dimension: 54.5 x 36 x 3.6mm
Communication interface: RS232
SIM card interface: 3V/1.8V

Specification for GPRS data transmission:
GPRS class 10: Max. 86kpbs(DL)
Mobile station class B
PBCCH support
Coding schemes CS 1-4

Specification for CSD data transmission
Up to 14.4kbps
V. 110
Non-transparent mode
USSD support
