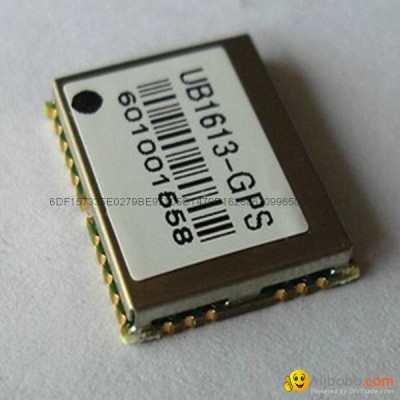

GPS RF receiver module UB-1613

Summary:

Master chip: U-BLOXG6010 ST   built-in TCXOdevice, between - 35 ℃~ + 80 ℃temperature maintains good performance consistency

C/A code,1.023MHz code stream

Receiving frequency band:L1 [1575.42MHz]

Track channel:50kinds

positioning performance

Autonomous positioning: 2.5m [average]

Assisted positioning: 2m [average], there SBAS assistance.

Drift: <0.02m / s

Timing Accuracy: 1us

Reference coordinate system: WGS-84

Maximum altitude: 50,000 m

Maximum speed: 500m / s

Acceleration: <4g

Electrical properties:

Tracking sensitivity:-160dBm

Acquisition sensitivity:-147dBm

Cold start time: 32s [average]

Warm start: 32s [average]

Hot start time: 1s [average]

Operating temperature: -35 ℃to +80 ℃

Package Size: 15.9 * 13.1 * 2.5mm

Electrical properties of the interface:


Wide voltage range: the main power supply is +2.7 ~ 3.6V, RTC power supply is +1.4-3.6 V [support does not pick RTC power]

Using active antenna (15 ~ 26dB/3.3V), or passive antenna

Output Data Baud rate 4800bps or 9600bps or 38400bps [support inside the module settings]

Time scale pulse support 0.25Hz ~ 1KHz, pulse width can be customized [TP1 support inside the module to set the pulse frequency and width]

Maximum effective positioning refresh rate 5Hz [Default 1Hz] [support inside the module settings] have software switch pin [EXTINT0 support wake and sleep]
