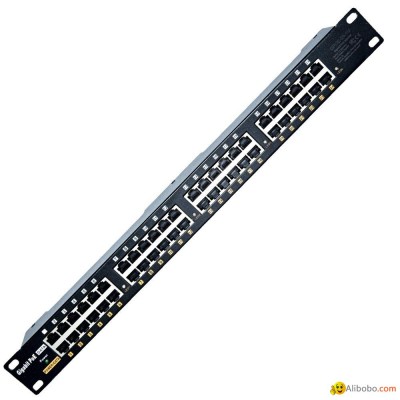

24 Port Gigabit Ethernet Injector

   – 24 Shielded RJ-45 LAN

   – 24 Shielded RJ-45 LAN+POE

   – all 4 data pairs active for gigabit data rates

    – shared data and power via transformer isolated

      power injection on mode B pairs


• Dual power supply inputs up to 150 watt each

• Use either power input – if two supplies are used, each half receives power from that side only

• Load Balancing by Relay for low loss and high reliability

• 1U high standard rack mount (1.75 x 19 x 2 inches)

• 650 ma automatic resettable fuse on each port

• Power is shared as needed by the devices

• Use with any Ethernet switch – passes all management info transparently

• 4 LED status indicators - – 1 master power GREEN LED

           – for each group of 4 POE sockets:

      0 to 20 ma                  20 to 400 ma                                     over 400 ma

      Off                                     GREEN                                                Yellow


• Ideal for IP Cameras, VOIP phone, WiFi Access Points with 802.3af or 802.3at or passive

• Technical support:  poe-world.com

• Power supply range 24 to 56 volts

        – Dual Power supply inputs (2.1mm x 5.5mm) see table below

       – we offer kits with power supplies

• Environmental

   – operating temperature range – 0 to 50 deg C

   – storage temperature range – 0 to 50 deg C

   – relative humidity range – 5 to 90% non condensing

   – FCC rules – there are no RF emitting devices in the design

    – the device is PE er NFPA standard 79, protected extra low voltage

    – no cooling is required, no fans. Quiet operation
