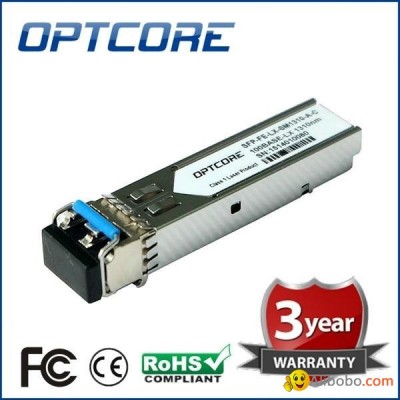

SC/LC OC-48 BIDI SFP Module-20km 2.5G BIDI SFP Module

Features

• Bi-Directional SFP Optical Transceiver

• Up to 2.5Gb/s data links

• Small Form-factor Pl able (SFP) MSA compliant

• Super High Isolation Between Two Wavelengths

• Hot-Pl able SFP Footprint

• Single SC/LC Connector

• Distance Up to 20km

• Single 3.3V Power Supply

• RoHS Compliant

• Class 1 Laser Safety Standard

Specifications

• Form Factor: BIDI SFP

• Data Rate: 2.5Gb/s

• Optical wavelength: TX 1310nm/RX 1550nm for OPB2488-3520xxR,TX 1550nm/RX 1310nm for OPB2488-5320xxR,

• Optical Components: DFB/PIN

• Fiber Type: SMF

• Max Transfer Distance: 20km

• Operating Temperature: 0~70ºC

• Diagnostics: Optional

• Connector: Simplex SC/LC

• Application: Gigabit Ethernet,SonET OC-48 / SDH STM-16, 1G & 2G Fiber Channel

Ordering information

• OPB2488-3520NCR       OC-48 LC BIDI SFP Transceiver,Tx1310nm/Rx1550nm,20km,0°C~+70ºC

• OPB2488-3520DCR       OC-48 LC BIDI SFP Transceiver,Tx1310nm/Rx1550nm,20km,0°C~+70ºC,DDM

• OPB2488-5320NCR       OC-48 LC BIDI SFP Transceiver,Tx1550nm/Rx1310nm,20km,0°C~+70ºC

• OPB2488-5320DCR       OC-48 LC BIDI SFP Transceiver,Tx1550nm/Rx1310nm,20km,0°C~+70ºC,DDM

• OPB2488-3520SNCR     OC-48 SC BIDI SFP Transceiver,Tx1310nm/Rx1550nm,20km,0°C~+70ºC

• OPB2488-3520SDCR     OC-48 SC BIDI SFP Transceiver,Tx1310nm/Rx1550nm,20km,0°C~+70ºC,DDM

• OPB2488-5320SNCR     OC-48 SC BIDI SFP Transceiver,Tx1550nm/Rx1310nm,20km,0°C~+70ºC

• OPB2488-5320SDCR     OC-48 SC BIDI SFP Transceiver,Tx1550nm/Rx1310nm,20km,0°C~+70ºC,DDM
