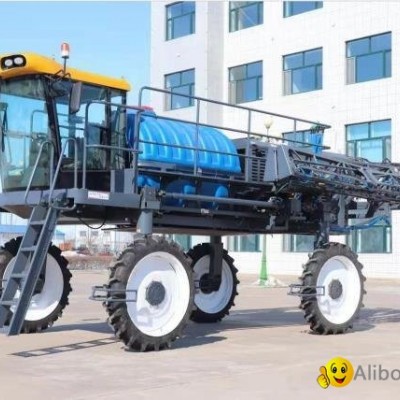

Self propelled high clearance four-wheel drive four-wheel plant protection spray

Model

3WPZ-3000Y

Liquid pump type

Diaphragm pump

Steering mode

Hydraulic assist, four-wheel steering, four-wheel drive

Liquid pump model

MB6360

Mix  mode

 Jet Agitation

Liquid pump Maximum flow

360L/min

Ground clearance

1.4m

Liquid pump Maximum speed

600r/min

Wheel tread

2.6-3.2m(Customizable)

Liquid pump Pressure

3.0Mpa

Three stage filtration system

Tank filtert, Filter, spray head

Medicine box volume

3000L

System working pressure

0.3-0.5Mpa

External dimension

7500X3950X3550mm

Walking speed

30Km/h

Cleaning tank

15L

Work speed

8-18Km/h

Length of spray Rod

25m

Power/speed

118kw---2300r/min(160HP)

Spray Height

0.65-2.8m

Discharge stage

China Ⅲ Emission

Boom

Hydraulic fold and lift

Storage Battery

150Ah/12V x2

Atomization angle

110°

tire type

9.5-38

Nozzle flow

1.2L/min

driver’s cab

separate closed cab

Nozzle distance between

500-700mm(Customizable)

Inside the cab

air conditioning(Optional match precision spray)

Nozzle type

NO.3

Gear position

Stepless speed change

Weight

8000kg
