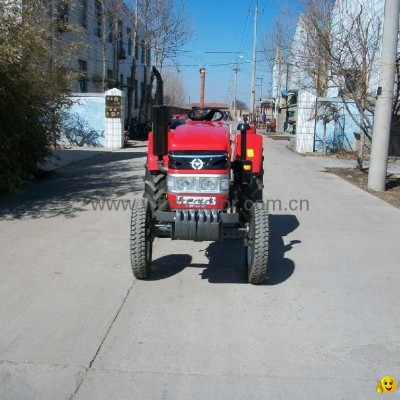

TypeTY300
Type 4×2 Wheeled Type
Over all dimension Length2858/2944
Width1190/1200/1240/1560
Height1080
Tread Front Wheel950/ 960 Fixed or 970/1170Adjusted
Rear Wheel960/ 980 Fixed or 1000/1200Adjusted
Wheel base1473/1559
Min.Ground Clearance277
（kg）Dry MassSix Shift :927(small chassis ) or 1120
Eight Shift:1160
Engine ModelJD2101T
Double cylinder ,Vertical, Water Cooled and 4-stroke
（kw）Rated Power22.1
（r/min）Rated Rev.2400
FuelDiesel Oil
TireFront Wheel4.5-12
Rear Wheel7.5-16
Clutch Dry-friction，single stage or Dry-friction，Two Stage
Steering Mechanical Type／Mechanical Type or Hydraulic Type
Transmission Box（3+1）×2or（4+1）×2or（4+1）×2×2（with creeping Shift）
Suspension Type Post Positioned Tri-point suspension Cat a orⅠ
PTO shaft（r/min） Type and Rev Non-independent Type 540/720 or Semi-independent Type 540/1000,540/720
Spline Size135Rectangle Spline With 6 teeth （6×28.91×34.79×8.69）
