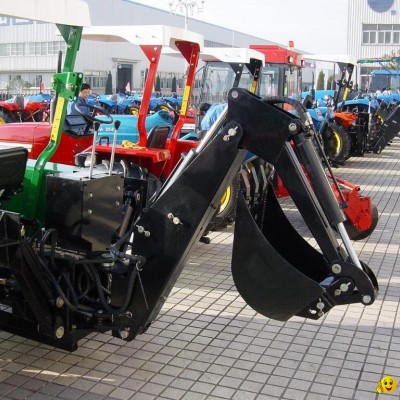

1).It’s used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
2).Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.
3).To better accomplish different kinds of work, buckets of different sizes can be selected and mounted on it.
Main Specifications:
| Model | LW-6 | LW-7 | LW-8 |
| Max. Digging Depth (mm) | 1850 | 2150 | 2640 |
| Max. Digging Height (mm) | 2500 | 3400 | 3510 |
| Max. Unloading Height (mm) | 1700 | 2300 | 2500 |
| Max. Swing Angle (deg.) | 180 | 180 | 180 |
| Bucket Rotation Angle(deg.) | 160 | 160 | 160 |
| Valve Standard Pressure | 16Mpa. | 16Mpa. | 16Mpa. |
| Bucket Capacity (m3) | 0.036 | 0.048 | 0.06 |
| Structural Weight (kg) | 450 | 500 | 540 |
| Power Required (hp) | 20-30 | 35-50 | 55-80 |
| Max. Digging Depth Flat Bottom (mm) | 1600 | 2000 | 2500 |
| The Company | Yancheng Yanhai Tractor Manufacturing Co.,Ltd |
| The contact | David Mei |
| The Address | 4 # Five-Star Industrial Park D, Yancheng City, Jiangsu Province,China |
| The Website | https://www.alibobo.com/com/yanche171/ |
