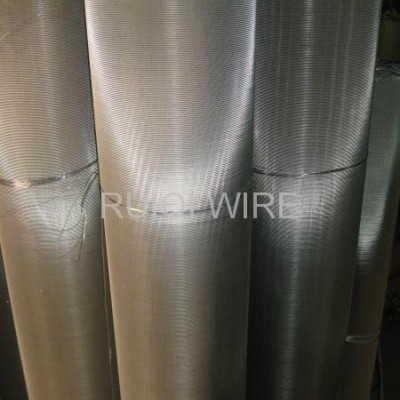

304 & 316 Dutch Weave Stainless Steel Mesh Filter Cloth

Dutch weave Stainless steel filter mesh, also known as stainless steel hollander weave woven wire .

Filter cloth material in AISI 304 stainless steel and 316 stainless steel.
Dutch weave is mainly used in partical separation and sifting, fuel filters, hydraulic fluid filters, gas diffusers,breather vents. Filter leaves can also be remeshed in any mesh.
The twilled Dutch weave achieves the smallest monofilament filter pores and also a smooth mesh surface. The large material cross section achieves advanced mesh stability.
Plain Dutch weave mesh features a lightly structured surface and achieves high levels of flow and minimal pressure drop

Our woven wire filter cloths combine a range of important features:

• Optimum flow rates
• Narrow pore size distribution
• Precise alignment of filter pores
• Stability
• Rigidity
• Excellent resistance to abrasion
• No particle dissolution
• Easy to clean
• Excellent levels of plasticity
• Chemical and thermal resistance
• Smooth surface structure
• High levels of reliability

Applications:

Pressure filters for fine filtration in hydraulic steering equipmentOil and fuel filtersressure and vacuum filters (disc, cell and drum filters)As porous media for fluidised bedsPre-coat filtersFilter candlesProtection of steering and fuel injection nozzlesInsulation / sound attenuation (e.g. aircraft engines)

Plain dutch weave stainless steel mesh:  12x64#  200 micron mesh;  14x88#  150micron mesh;  24x110#  80micron mesh;  30x150#  65micron mesh;  40x200#  55 micron mesh;  50x250#  40micron mesh;  80x400#  35micron mesh.

Twilled dutch weave stainless steel mesh: 80x700# 25micron mesh;  165x800# 15micron mesh;  165x1400#  10micron mesh;  200x1400#  5micron mesh;  325x2300#  2micron mesh.

Dutch Weave Stainless Filter Mesh Specifications MESH COUNT WIRE DIAMETER NOMINAL ABSOLUTE WEAVE TYPE PER INCH INCHS MM FILTER FILTER   WARP x WEFT   WARP X WEFT RATING RATING   12 x 64  0.023 x 0.0165  0.58 x 0.42 200  290  plain dutch 14 x 88  0.020 x 0.013  0.50 x 0.33 150  240  plain dutch 24 x 110  0.015 x 0.0105  0.38 x 0.26 80  125  plain dutch 30 x 150  0.009 x 0.007  0.23 x 0.18 65  105  plain dutch 40 x 200  0.007 x 0.0055  0.18 x 0.14 55  75  plain dutch 50 x 250  0.0055 x 0.0045  0.14 x 0.114 40  63  plain dutch 80 x 400  0.005 x 0.0028  0.125 x 0.071 35  45  plain dutch 20 x 250  0.010 x 0.008  0.25 x 0.2 100  120  twill dutch 80 x 700  0.004 x 0.003  0.1 x 0.076 25  38  twill dutch 165 x 800  0.0029 x 0.002  0.074 x 0.05 15  26  twill dutch 165 x 1400  0.0028 x 0.0016  0.071 x 0.04 10  18  twill dutch 200 x 1400  0.0028 x 0.0016  0.071 x 0.04 5  14  twill dutch 325 x 2300  0.0014 x 0.0011  0.036 x 0.028 2  9  twill dutch
